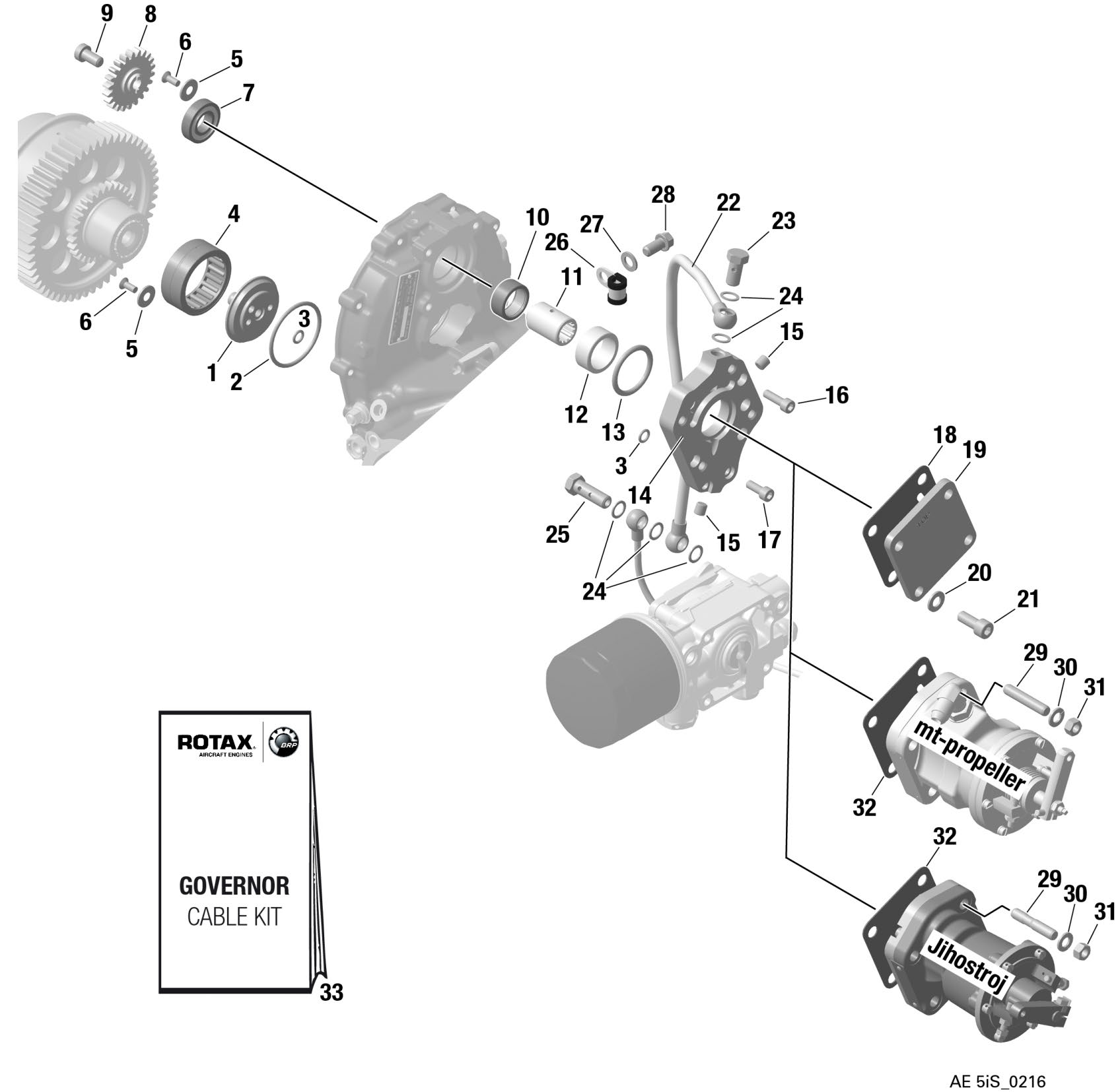

fig. 61-20-00

HYDR. GOVERNOR FOR CONSTANT SPEED PROPELLER For ROTAX 915IS

Click on Number to order Part

Fig. Part Number Description Qty Unit/Price Add to Cart
1 810310 OIL INLET FLANGE 1 167.81 +
2 430175 O-RING 46X3 1 13.09 +
3 830415 O-RING DIN 3771-7X2-N, FPM 75 2 6.08 +
4 832950 NEEDLE BEARING RNA 49/32 1 244.56 +
5 227280 THRUST WASHER 2 6.98 +
6 940315 Voir 940316 2 0 +
7 832362 Roulement de pompe à vide 1 36.14 +
8 834245 VACUUM PUMP GEAR 22 T 1 261.95 +
9 941521 Vis M 8 X 16 gouverneur hydraulique 1 1.03 +
10 232925 NEEDLE SLEEVE 22X28X12 1 35 +
11 847773 DRIVE SLEEVE 1 340.74 +
12 847802 SPACER 25/31,95/13 1 29.04 +
13 950380 O-RING 32X4 1 10.54 +
14 810070 GOVERNOR FLANGE 1 712.09 +
15 941611 PLUG SCREW M8X1 2 5.11 +
16 241930 USE 241935 4 0 +
17 241237 ALLEN SCREW ISO 4762 - M6x16 - 8.8 2 0.43 +
18 931770 GASKET 1 11.8 +
19 926231 COVER 1 133.25 +
20 250315 WASHER ISO 7093 - 8 - 200HV 4 0.37 +
21 240072 ALLEN SCREW ISO 4762 - M8x20 - 8.8 4 1.12 +
22 956460 PRESSURE OIL LINE ASSY. 1 325.02 +
23 940874 Vis banjo M10x1x19 1 11.58 +
24 230150 SEALING RING A 10X14 DIN 7603 5 1.01 +
25 1 0 +
26 853418 CABLE CLAMP 1 22.42 +
27 944131 WASHER 8 ISO 7092-300 HV 1 1.08 +
28 440854 EX./TORX-FLANGE SCREW M8X16-MK 1 0.77 +
29 840711 STUD M8X21/20 4 14.48 +
30 945832 LOCK WASHER DIN 128-A8-FST 4 0.17 +
31 942671 Voir 942674 4 0 +
32 931372 GASKET 1 233.04 +
33 481485 GOVERNOR CABLE KIT 1 96 +
