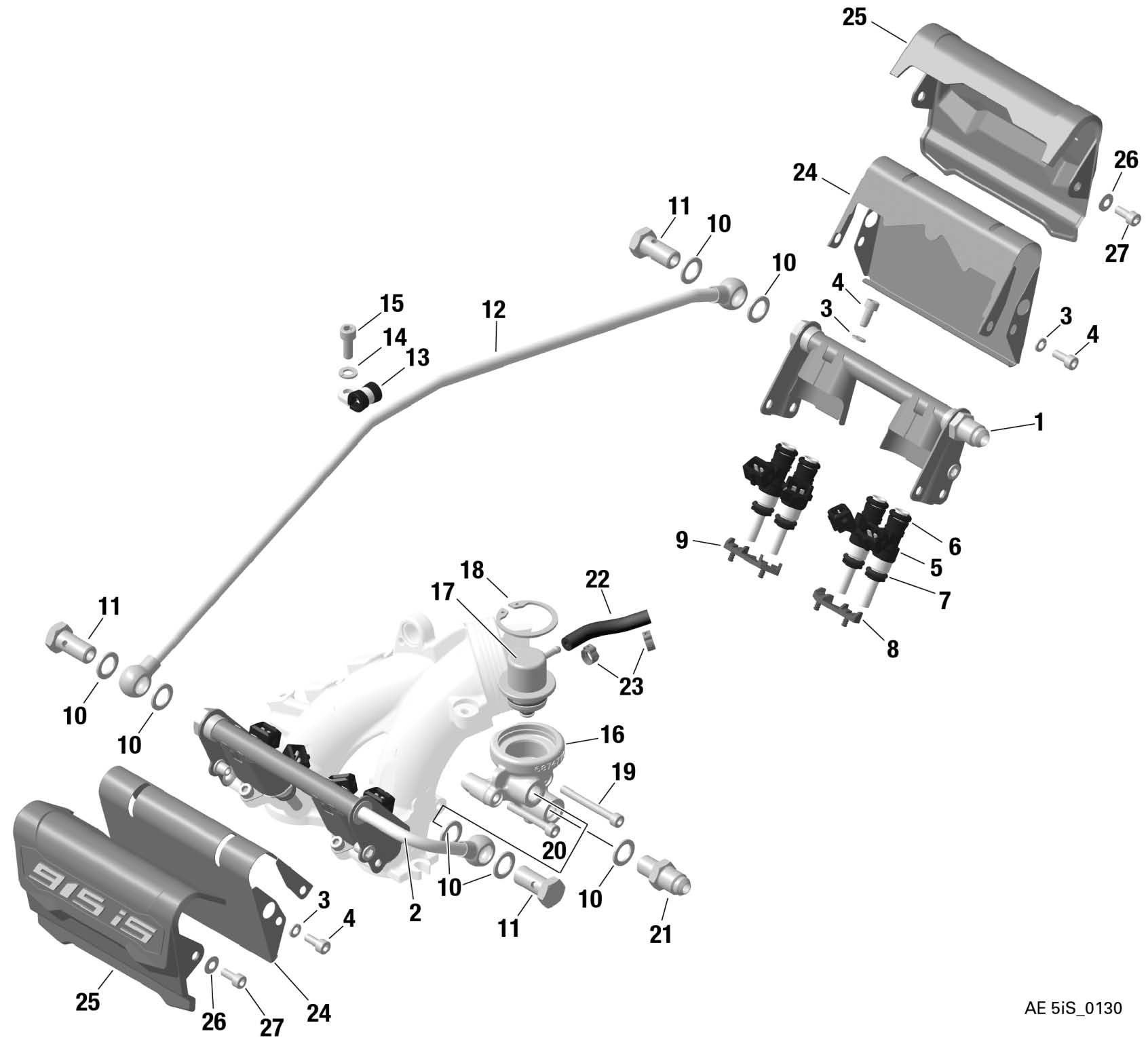

fig. 73-10-00-c
FUEL INJECTOR, FUEL RAIL, PRESSURE REGULATOR, FUEL RAIL COVER For ROTAX 915IS
Click on Number to order Part
Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
---|---|---|---|---|---|
1 | 874795 | FUELRAIL 1/3 | 1 | 407.26 | + |
2 | 874797 | FUELRAIL 2/4 | 1 | 323.75 | + |
3 | 945750 | Voir 945830 | 11 | 0 | + |
4 | 640541 | vis BTR M5X12 DIN 912 | 11 | 0.25 | + |
5–7 | 874780 | FUEL INJECTOR | 8 | 223.78 | + |
6 | 831060 | O-RING 7,52X3,51 VITON B BLACK | 8 | 13.37 | + |
7 | 831050 | O-RING 8,30X3,05 VITON B BROWN | 8 | 6.34 | + |
8 | 860042 | DAMPER LEFT | 2 | 3.24 | + |
9 | 860040 | DAMPER RIGHT | 2 | 3.24 | + |
10 | 250640 | joint cuivre 12X18-CU | 7 | 1.48 | + |
11 | 641540 | BANJO BOLT - DIN 7643 - 8 - 3 | 3 | 18.35 | + |
12 | 874802 | FUEL LINE ASSY. | 1 | 184.7 | + |
13 | 853412 | CABLE CLAMP | 1 | 5.63 | + |
14 | 945751 | Voir 945831 | 1 | 0 | + |
15 | 241239 | ALLEN SCREW M6X16 | 1 | 3.24 | + |
16 | 874770 | PRESSURE REGULATOR HOUSING | 1 | 119.81 | + |
17 | 889262 | FUEL PRESSURE REGULATOR ASSY. | 1 | 419.83 | + |
18 | 845650 | RETAINING RING 36X1,5 | 1 | 1.67 | + |
19 | 941791 | BTR M 5 X 45 mm | 1 | 0.98 | + |
20 | 841501 | Voir 841502 | 1 | 0 | + |
21 | 840700 | ADAPTER 9/16 UNF/M12x1,5 | 1 | 72 | + |
22 | 960631 | TUBE 60 MM | 1 | 6.84 | + |
23 | 853653 | 1-EAR-CLAMP 8,3-10 MM | 2 | 1.64 | + |
24 | 975090 | HEAT SHIELD | 2 | 7.87 | + |
25 | 975065 | COVERING FUELRAIL | 2 | 22.49 | + |
26 | 939445 | SPRING WASHER 12X5.2X0.5 | 4 | 2.4 | + |
27 | 640541 | vis BTR M5X12 DIN 912 | 4 | 0.25 | + |
