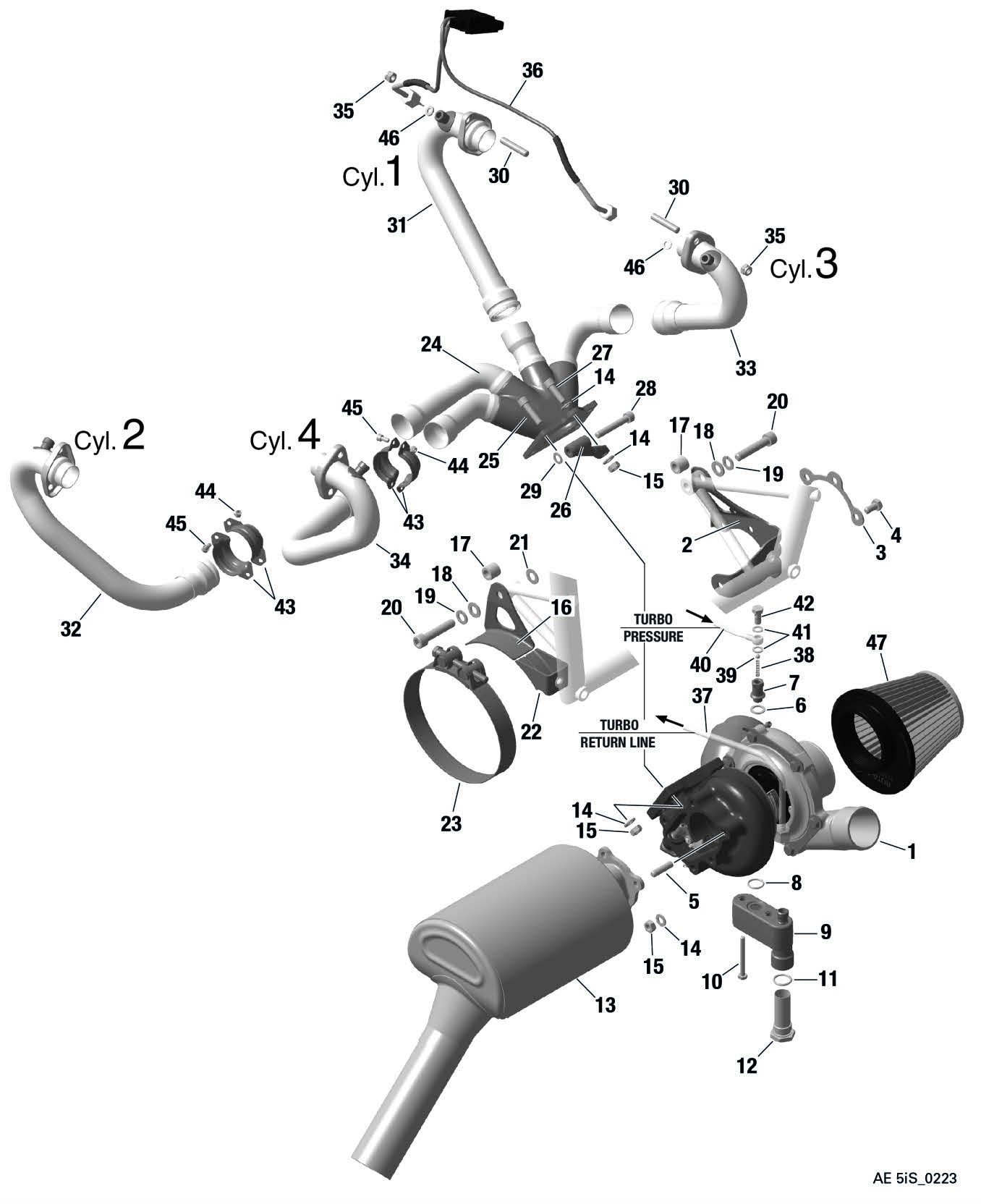

fig. 78-10-00

EXHAUST SYSTEM, EXHAUST TEMPERATURE SENSOR For ROTAX 915IS

Click on Number to order Part

Fig. Part Number Description Qty Unit/Price Add to Cart
1 893106 TURBOCHARGER ASSY. 1 6898.52 +
2 851296 TURBOCHARGER BRACKET 1 72.36 +
3 851305 REINFORCEMENT SHEET 1 10.92 +
4 940583 HEX. SCREW M8X16 STAINLESS STEEL 3 2.78 +
5 940173 STUD M8X19,5/13 5 6.41 +
6 250640 joint cuivre 12X18-CU 1 1.48 +
7 956489 VALVE HOUSING 1 82.34 +
8 430225 O-RING 15,9-2,3 1 7.97 +
9 656770 OIL SUMP ASSY 1 253.51 +
10 640601 HEX.SCREW ISO 4014 - M6X55 - 8.8 2 7.34 +
11 250055 O-RING DIN 3771-18X2,5-N, FPM 75 1 1.5 +
12 640860 PLUG SCREW ASSY. M22x1,5 1 66.55 +
13 979475 MUFFLER ASSY. 1 2011.62 +
14 250313 WASHER 8,4 STAINLESS STEEL 11 1.12 +
15 242203 HEX.NUT M8 STAINLESS STEEL 9 1.51 +
16 851680 EXHAUST BRACKET 1 49.8 +
17 847841 SPACER 10,5/17/15 2 9.36 +
18 927411 WASHER 10,5 2 0.37 +
19 945753 Voir 945833 2 0 +
20 640572 ALLEN SCREW M10X50 2 3.19 +
21 927410 Rondelle diamètre 10 mm AR 0 +
22 851685 EXHAUST BRACKET 1 54.84 +
23 851445 CLAMP 140-148 1 91.46 +
24 979562 EXHAUST MANIFOLD ASSY. 1 1327.3 +
25 840993 ALLEN SCREW M8X30 4 1.18 +
26 953306 MANIFOLD BRACKET ASSY. 1 303.7 +
27 240073 ALLEN SCREW M8X20 DIN 912 1 1.44 +
28 440107 ALLEN SCREW M8X50 DIN 912 1 1.66 +
29 926400 WASHER 8,4/15/0,5 AR 2.65 +
29 926401 WASHER 8,4/15/1 AR 2.94 +
29 926402 WASHER 8,4/15/1,5 AR 3.07 +
30 940366 Voir 940368 8 0 +
31 979502 EXHAUST PIPE ASSY. CYL. 1 1 719.8 +
32 979512 EXHAUST PIPE ASSY. CYL. 2 1 861.82 +
33 979522 EXHAUST PIPE ASSY. CYL. 3 1 766.21 +
34 979533 EXHAUST PIPE ASSY. CYL. 4 1 861.82 +
35 842950 LOCK NUT DIN 14441 M8-SW12 8 2.29 +
36 866262 TEMPERATURE SENSOR 2 990.65 +
37 656760 TURBO OIL SUCTION LINE 1 183.65 +
38 239131 COMPRESSION SPRING 22,0 1 4.67 +
39 232440 BALL 5,556 MM 1 0.53 +
40 656765 TURBO PRESSURE OIL LINE 1 236.86 +
41 950141 SEALING RING A 8X13 DIN 7603 2 1.15 +
42 840730 BANJO BOLT M8X1X17 1 54.31 +
43 979570 EXHAUST PIPE CLAMP 4 21.31 +
44 901442 HEX.NUT ISO 7042 - M5 - A2 4 0.24 +
45 240153 ALLEN SCREW M5X10 ISO 4762-A2-70 4 0.24 +
46 244213 WASHER 6,4 4 0.95 +
