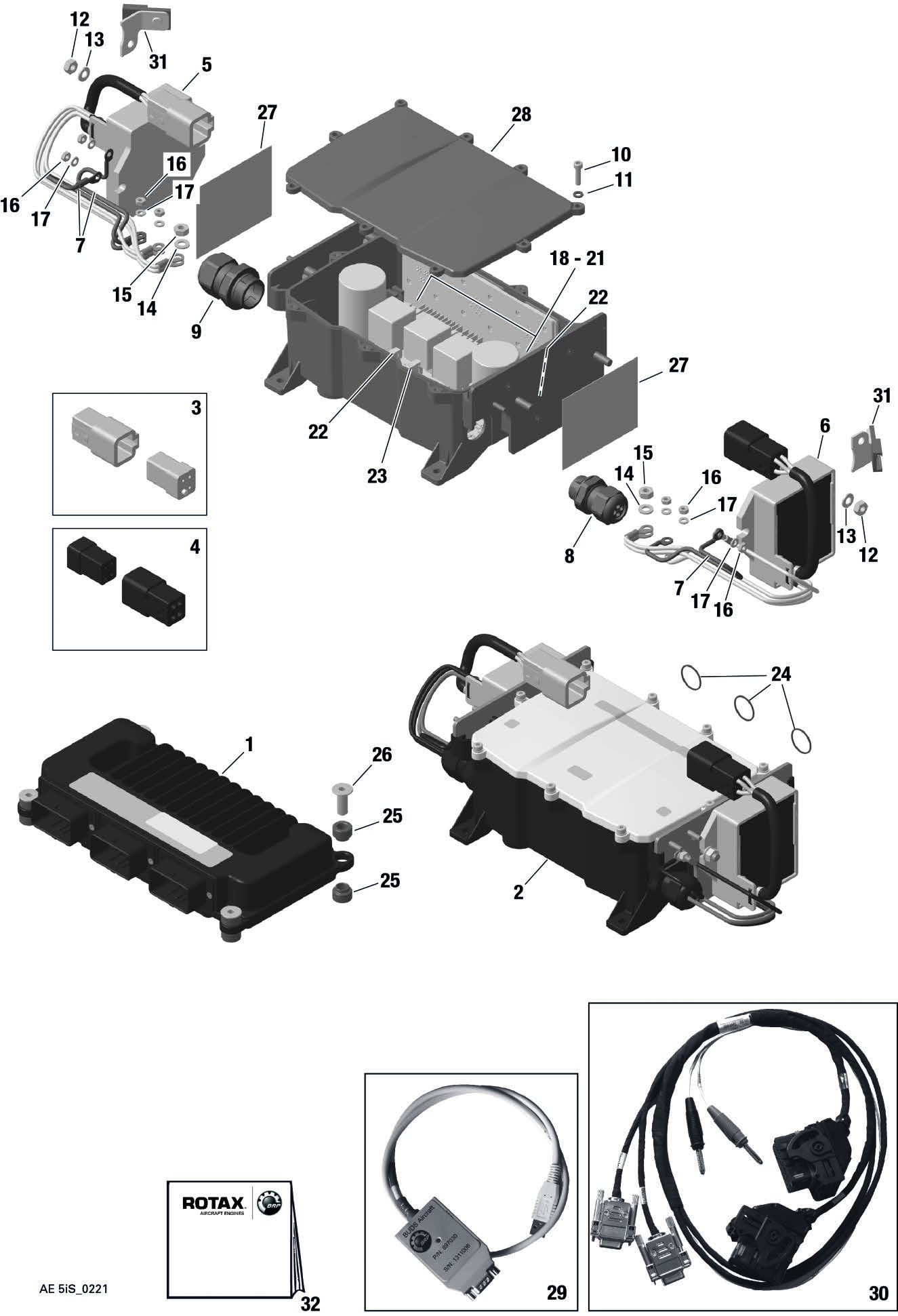

fig. 76-10-00

ENGINE CONTROL UNIT, FUSE BOX, REGULATOR For ROTAX 915IS

Click on Number to order Part

Fig. Part Number Description Qty Unit/Price Add to Cart
1 881254 ECU ASSY. WRAPPED UP 1 9558.42 +
2 881321 FUSE BOX PACKAGED 1 3768.91 +
3 866422 CONNECTOR SET GREY 1a 106.22 +
4 866420 CONNECTOR SET BLACK 1a 135.55 +
5 864395 REGULATOR B-CONNECTOR GREY 1 397.6 +
6 864392 REGULATOR A-CONNECTOR BLACK 1 400.97 +
7 866440 MASS CABLE ASSY. 3 10.73 +
8 201370 SKINTOP CLICK 20 1 12.41 +
9 201375 SKINTOP CLICK 25 1 12.41 +
10 840763 ALLEN SCREW M4X16 ISO 4762-A2-70 9 42.48 +
11 827230 PLASTIC WASHER M4 9 91.92 +
12 842042 LOCK NUT M6 4 2.29 +
13 244213 WASHER 6,4 2 0.95 +
14 927573 WASHER 5,3 DIN 125 2 0.25 +
15 842033 LOCK NUT M5 2 0.25 +
16 242538 LOCK NUT DIN 985-M4-A2 7 0.25 +
17 244078 WASHER 4,3 DIN 134 7 6.74 +
18 866450 MINI-FUSE 2A 2 3 +
19 866452 MINI-FUSE 5A 11 3 +
20 866454 MINI-FUSE 7,5A 2 3 +
21 866456 MINI-FUSE 10A 7 5.05 +
22 866490 ATO-FUSE 20A 1 3 +
23 866492 ATO-FUSE 35A 1 3 +
24 931110 SEALING RING 3 13.43 +
25 201460 RUBBER SLEEVE 8 23.47 +
26 947540 SPACER 4 28.1 +
27 282870 HEAT TRANSFER PAD 65x80x0,5MM 2 23.21 +
28 201690 COVER, FUSE BOX 1 177.43 +
29 864021 B.U.D.S. SET LEVEL 1 1 1150.26 +
29 864022 B.U.D.S. SET LEVEL 2 1 1150.21 +
29 864023 B.U.D.S. SET LEVEL 3 1 1251.68 +
30 864280 SERVICE WIRING HARNESS ASSY. 1 227.17 +
31 951983 CONNECTOR BRACKET ASSY. 2 33.31 +
32–37 881555 NUT SET FUSE BOX 1 135.79 +
33 242538 LOCK NUT DIN 985-M4-A2 3 0.25 +
34 244078 WASHER 4,3 DIN 134 6 6.74 +
35 842042 LOCK NUT M6 3 2.29 +
37 931110 SEALING RING 3 13.43 +
