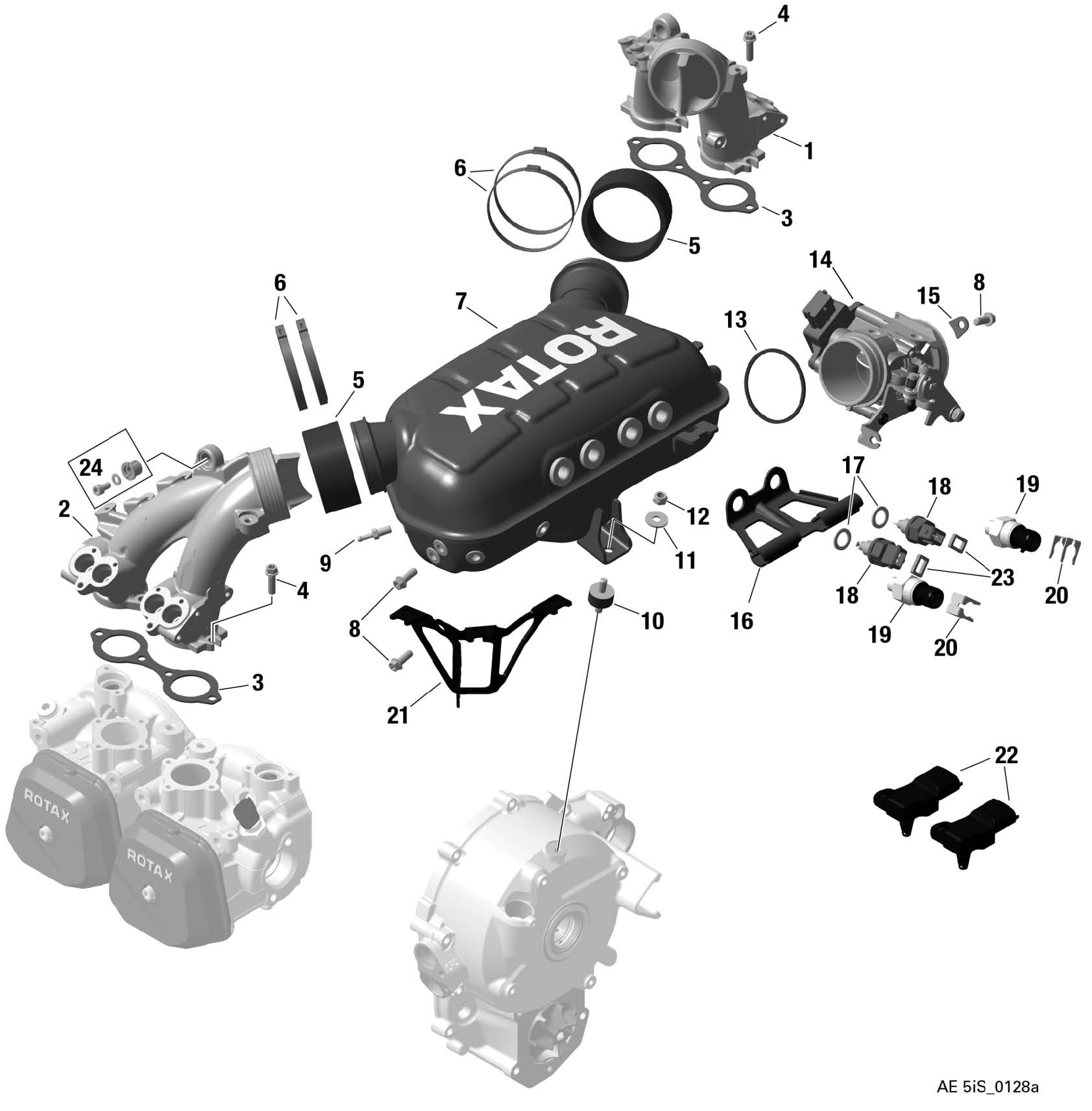

fig. 73-10-00

INTAKE MANIFOLD, AIRBOX, THROTTLE BODY SOCKET For ROTAX 915IS

Click on Number to order Part

Fig. Part Number Description Qty Unit/Price Add to Cart
1 667401 INTAKE MANIFOLD 1/3 1 526.63 +
2 667406 INTAKE MANIFOLD 2/4 1 526.63 +
3 850091 ISOLATING FLANGE 2 5.88 +
4 440207 HEX./TORX-FLANGE SCREW M6X20-SW8/T30 8 0.79 +
5 460421 CONNECTING SOCKET 2 8.84 +
6 953093 1-EAR-CLAMP 66,3-69,5 MM 4 4.34 +
7 667411 AIRBOX 1 1014.23 +
8 440164 HEX./TORX-FLANGE SCREW M6X16-SW8/T30 MK 5 0.66 +
9 840672 HOSE NIPPLE M6 MK 1 34.7 +
10 860700 RUBBER 20X10XM6 1 21.18 +
11 827968 WASHER 6,4 DIN 9021 1 0.25 +
12 842042 LOCK NUT M6 1 2.29 +
13 850020 RUBBER RING 1 3 +
14 685055 THROTTLE BODY SOCKET ASSY. 1 415.9 +
15 953020 SEPARATING PLATE 3 1.55 +
16 651780 CONNECTOR BRACKET 1 41.81 +
17 250015 SEALING RING A12X18 DIN 7603 2 0.25 +
18 222421 TEMPERATURE SENSOR 2 31.8 +
19 664364 PRESSURE SENSOR 2,0 2 354.29 +
20 638140 CLAMP 2 21.17 +
21 951563 CONNECTOR BRACKET 1 57.36 +
22 874654 PRESSURE-/TEMP. SENSOR 2a 308.99 +
23 850610 CONNECTOR GASKET 2 5.38 +
24 481485 GOVERNOR CABLE KIT 1 96 +
