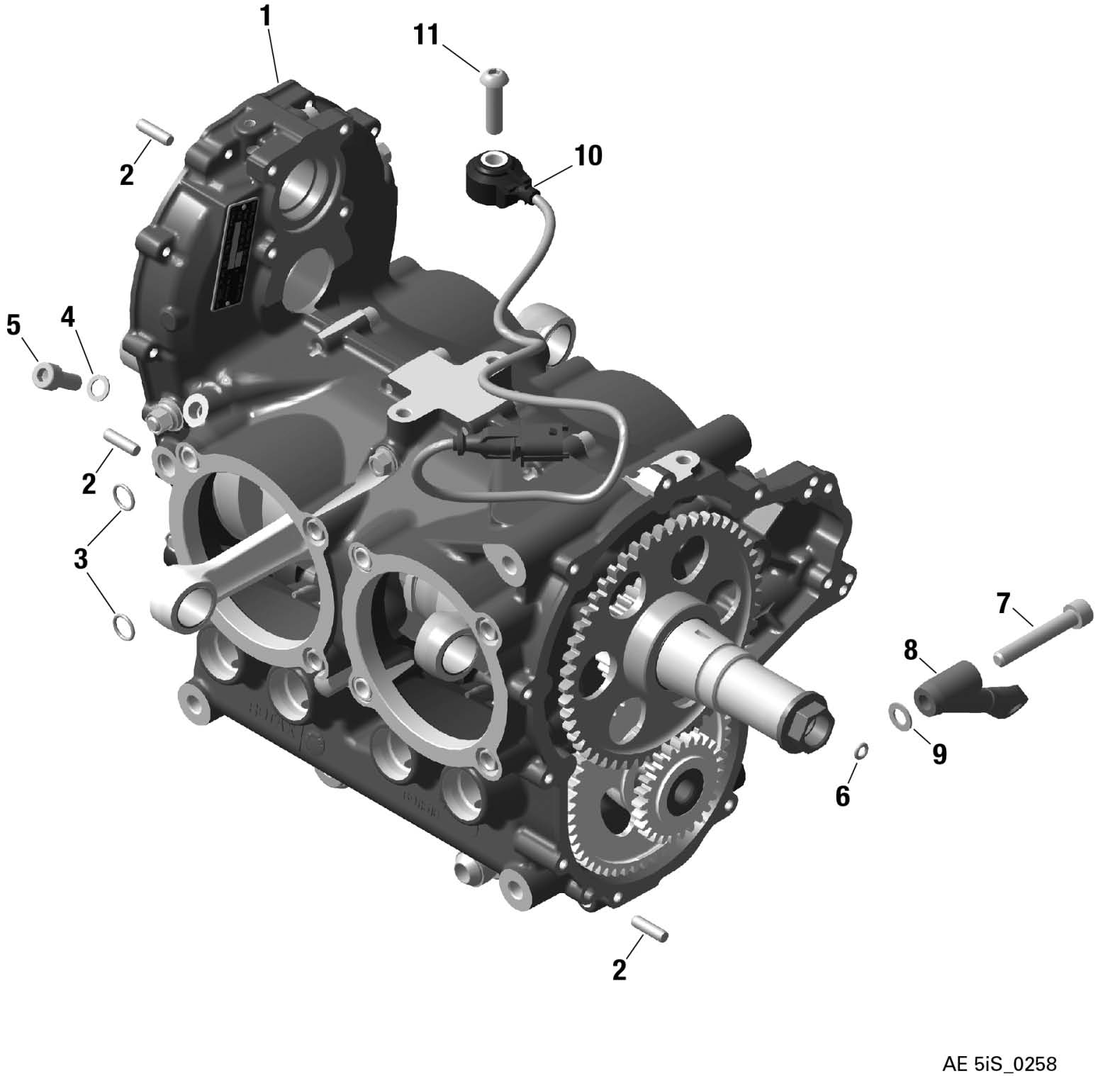

fig. 72-20-00-a
CRANKCASE For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | 1a | 0 | + | ||
| 2 | 429230 | DOWEL 6X20 | 2 | 2.38 | + |
| 3 | 431570 | O-RING DIN 3771-10,82X1,78-N, FPM 70 | 8 | 6.48 | + |
| 4 | 950141 | SEALING RING A 8X13 DIN 7603 | 1 | 1.25 | + |
| 5 | 240071 | Voir 240072 | 1 | 0 | + |
| 6 | 831929 | O-RING 5X2 | 1 | 4.28 | + |
| 7 | 440107 | ALLEN SCREW M8X50 DIN 912 | 1 | 1.8 | + |
| 8 | 953306 | MANIFOLD BRACKET ASSY. | 1 | 328.3 | + |
| 9 | 250313 | WASHER 8,4 STAINLESS STEEL | 1 | 1.2 | + |
| 10 | 866270 | KNOCK SENSOR | 1 | 320.86 | + |
| 11 | 570661 | LENS HEAD SCREW ISO 7380-M8X30-8.8 | 1 | 0.7 | + |
