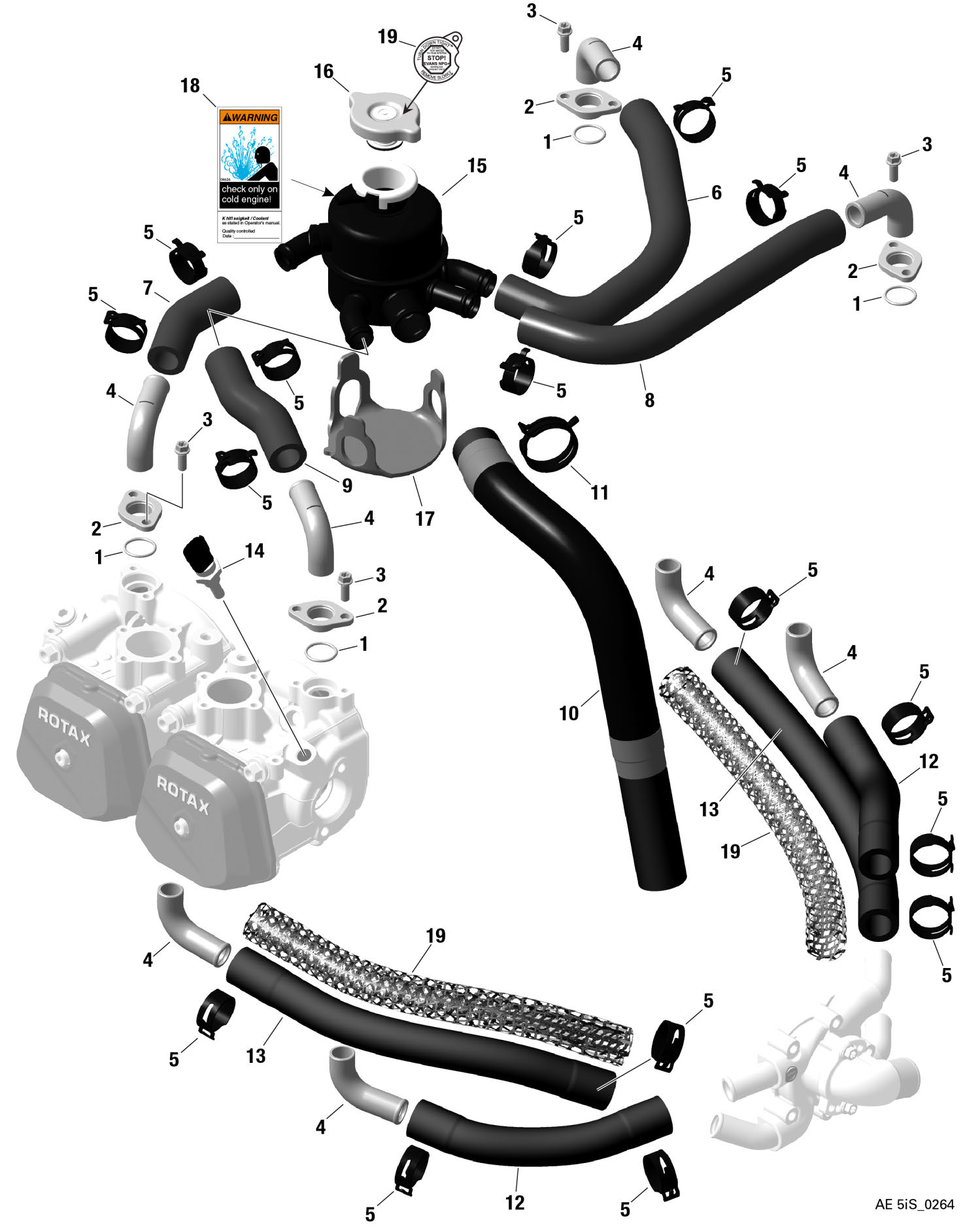

fig. 75-20-00-b
EXPANSION TANK WITH HOSES AND CONNECTIONS For ROTAX 915IS
Click on Number to order Part
Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
---|---|---|---|---|---|
1 | 950180 | O-RING 19-2 | 4 | 13.31 | + |
2 | 922303 | FLANGE | 4 | 58.3 | + |
3 | 440162 | HEX./TORX-FLANGE SCREW M6X16-SW8/T30 | 8 | 0.26 | + |
4 | 922231 | Voir 922236 | 8 | 0 | + |
5 | 851645 | SELF COMPENSATING CLAMP 25 | 16 | 6.97 | + |
6 | 822422 | FORM HOSE 1 | (1a) | 65.71 | + |
6 | 822420 | FORM HOSE 1 | 1b | 23.16 | + |
7 | 822432 | FORM HOSE 2 | (1a) | 19.06 | + |
7 | 822430 | FORM HOSE 2 | 1b | 5.16 | + |
8 | 822442 | FORM HOSE 3 | (1a) | 57.89 | + |
8 | 822440 | FORM HOSE 3 | 1b | 22.49 | + |
9 | 822447 | FORM HOSE 4 | (1a) | 26.33 | + |
9 | 822445 | FORM HOSE 4 | 1b | 11.09 | + |
10 | 822450 | FORM HOSE | (1a) | 46.34 | + |
10 | 822452 | FORM HOSE | 1b | 109.54 | + |
11 | 951350 | SELF COMPENSATING CLAMP 35 | 1 | 4.78 | + |
12 | 922366 | WATER TUBE 180 +/-3 MM | (2a) | 33.91 | + |
12 | 922360 | WATER TUBE 180 +/-3 MM | 2b | 27.72 | + |
13 | 922367 | WATER TUBE 280 +/-3 MM | (2a) | 52.18 | + |
13 | 922362 | WATER TUBE 280 +/-3 MM | 2b | 43.84 | + |
14 | 965537 | TEMPERATURE SENSOR | 1 | 237.2 | + |
15-18 | 922664 | Vase d'expansion | 1 | 202.02 | + |
16 | 922072 | RADIATOR CAP WITH GASKET 1,2 BAR | 1 | 87.98 | + |
17 | 860827 | RUBBER PLATE | 1 | 15.41 | + |
18 | 897506 | WARNING LABEL | 2 | 5.63 | + |
19 | 860650 | PROTECTION TUBE (HEAT RESISTANT) | 2 | 297.77 | + |
