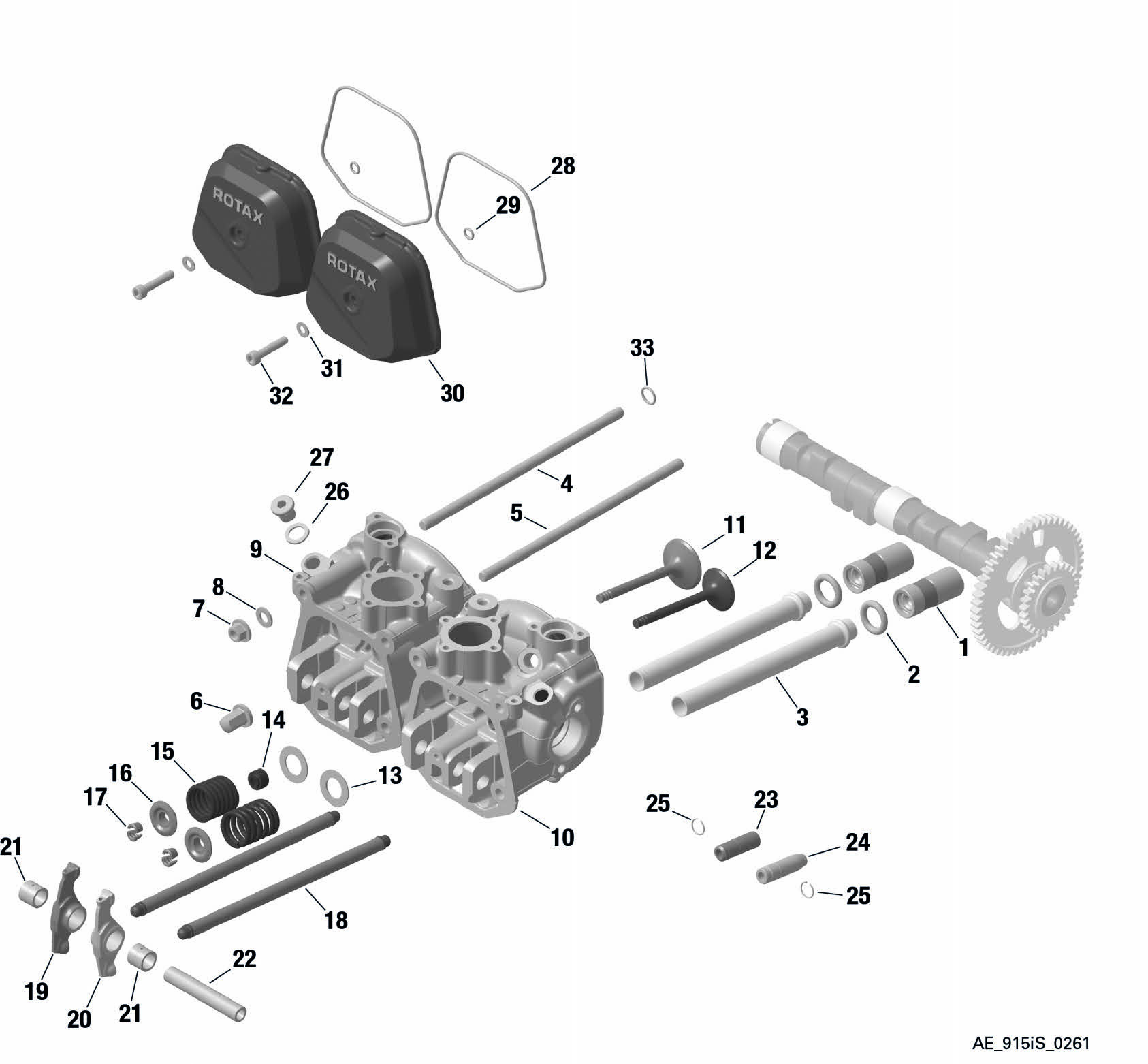

fig. 72-20-00-c
CAMSHAFT, VALVE TRAIN, CYLINDER HEAD, VALVE COVER For ROTAX 915IS
Click on Number to order Part
Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
---|---|---|---|---|---|
1 | 881832 | HYDRAULIC VALVE TAPPET SET | 8 | 900 | + |
2 | 850930 | O-RING 16X5 | 8 | 8.72 | + |
3 | 924440 | OIL RETURN TUBE | 8 | 40.82 | + |
4 | 840171 | STUD M8X200 | 8 | 10.42 | + |
5 | 840141 | STUD M8X186 | 8 | 10.42 | + |
6 | 842476 | COLLAR CAP NUT M8 | 8 | 22.46 | + |
7 | 942302 | COLLAR NUT M8 | 8 | 19.3 | + |
8 | 250311 | Rondelle M8,4 | 8 | 0.31 | + |
9 | 623777 | Culasse 915 iS cylindre 2/3 | 2 | 1793.7 | + |
10 | 623787 | Culasse 915 iS cylindre 2/4 | 2 | 1840.84 | + |
11 | 854101 | INTAKE VALVE 38 MM | 4 | 228.23 | + |
12 | 854113 | EXHAUST VALVE 32MM | 4 | 369.05 | + |
13 | 926210 | SHIM 16/27.4/1 | 8 | 3.46 | + |
14 | 230810 | VALVE STEM SEAL | 4 | 9.98 | + |
15 | 838156 | VALVE SPRING | 8 | 29.23 | + |
16 | 854186 | VALVE SPRING RETAINER | 8 | 25.31 | + |
17 | 253092 | VALVE COTTER | 16 | 3.72 | + |
18 | 854861 | Voir 854862 | 8 | 0 | + |
19 | 854383 | ROCKER ARM LEFT | 4 | 353.96 | + |
20 | 854393 | ROCKER ARM RIGHT | 4 | 353.96 | + |
21 | 933396 | BUSHING | 8 | 53.75 | + |
22 | 854193 | ROCKER ARM SHAFT | 4 | 43.33 | + |
23 | 854225 | VALVE GUIDE | 4 | 96.05 | + |
24 | 253114 | INLET VALVE GUIDE | 4 | 27.34 | + |
25 | 245440 | RETAINING RING DIN 9925 - 12 | 8 | 0.47 | + |
26 | 250015 | SEALING RING A12X18 DIN 7603 | 3 | 0.25 | + |
27 | 841923 | PLUG SCREW M12X1,5 DIN 908 | 3 | 7.73 | + |
28 | 250285 | O-RING 105X2,5 | 4 | 30.28 | + |
29 | 430205 | O-RING 6,4X1,8 | 4 | 4.87 | + |
30 | 612265 | VALVE COVER SKY BLUE | 4 | 263.4 | + |
31 | 927941 | WASHER 6,0/12/1 | 4 | 0.62 | + |
32 | 840887 | ALLEN SCREW ISO 4762 M6X30 10.9 | 4 | 0.62 | + |
33 | 431570 | O-RING DIN 3771-10,82X1,78-N, FPM 70 | 8 | 6.48 | + |
