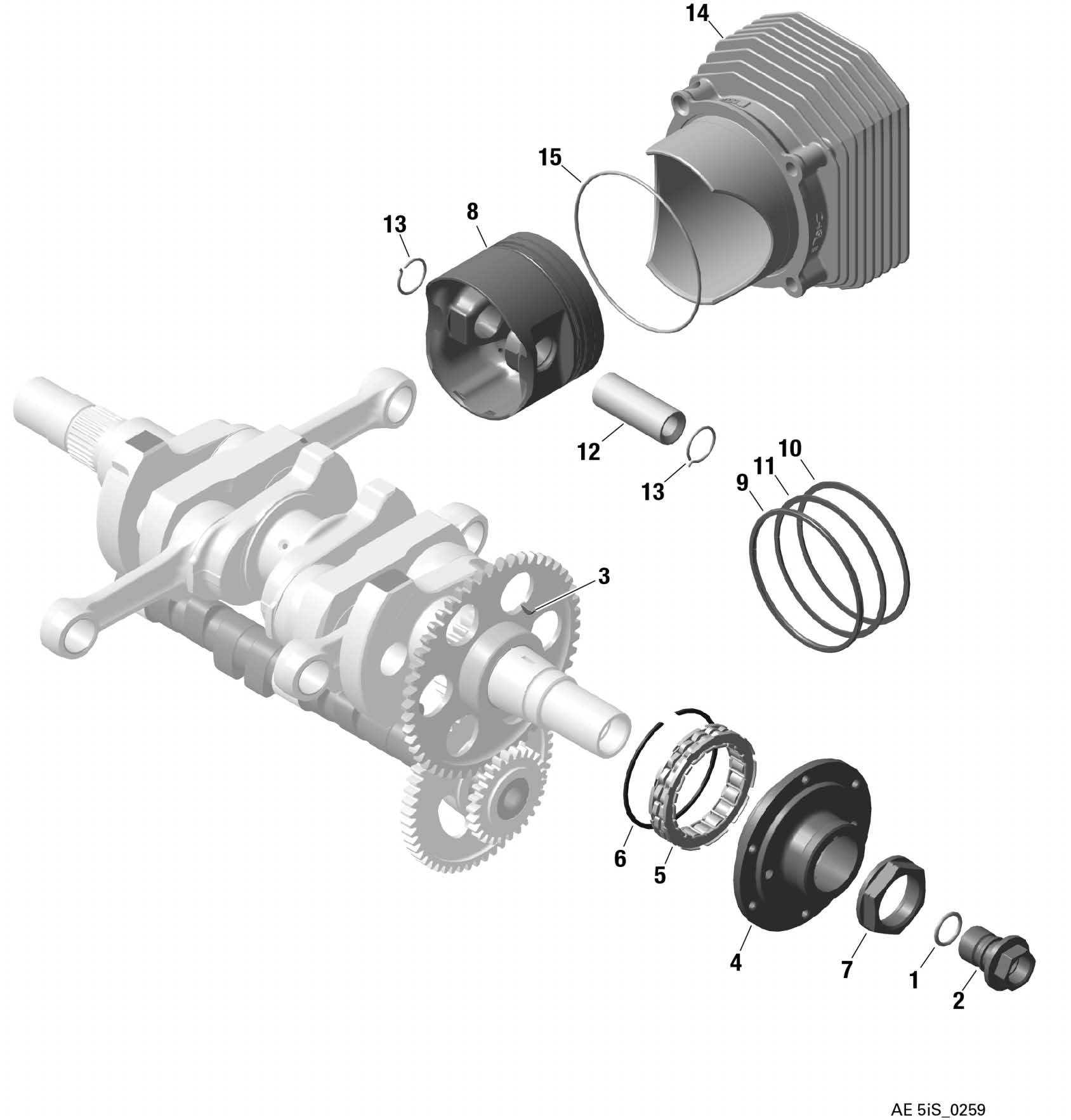

fig. 72-20-00-b

CRANKSHAFT, PISTON, CYLINDER, SPRAG CLUTCH For ROTAX 915IS

Click on Number to order Part

Fig. Part Number Description Qty Unit/Price Add to Cart
1 430225 O-RING 15,9-2,3 1 7.97 +
2 940526 PLUG SCREW M20X1,5 1 85.54 +
3 246055 WOODRUFF KEY 3X3,7 DIN 6888 1 3.19 +
4 852407 SPRAG CLUTCH HOUSING 1 147.55 +
5 958856 SPRAG CLUTCH 51,710X68,377X13 1 418.96 +
6 845425 CIRCLIP 70 1 6.91 +
7 942250 HEX. NUT M32X1,5-LH 1 23.26 +
8 893926 PISTON ASSY. 84/84,01 MM 4 506.88 +
9 815230 OIL SCRAPER RING 4 64.56 +
10 815251 RECTANGULAR RING 84/77X1,5 4 83.24 +
11 815280 TAPERED COMPRESSION RING 84 4 45.44 +
12 916380 PISTON PIN 20X12X51,3 4 68.69 +
13 845106 MONOHOOK CIRCLIP 20 8 2.26 +
14 913228 CYLINDER 4 773.17 +
15 250510 O-RING 87X2 4 25.31 +
