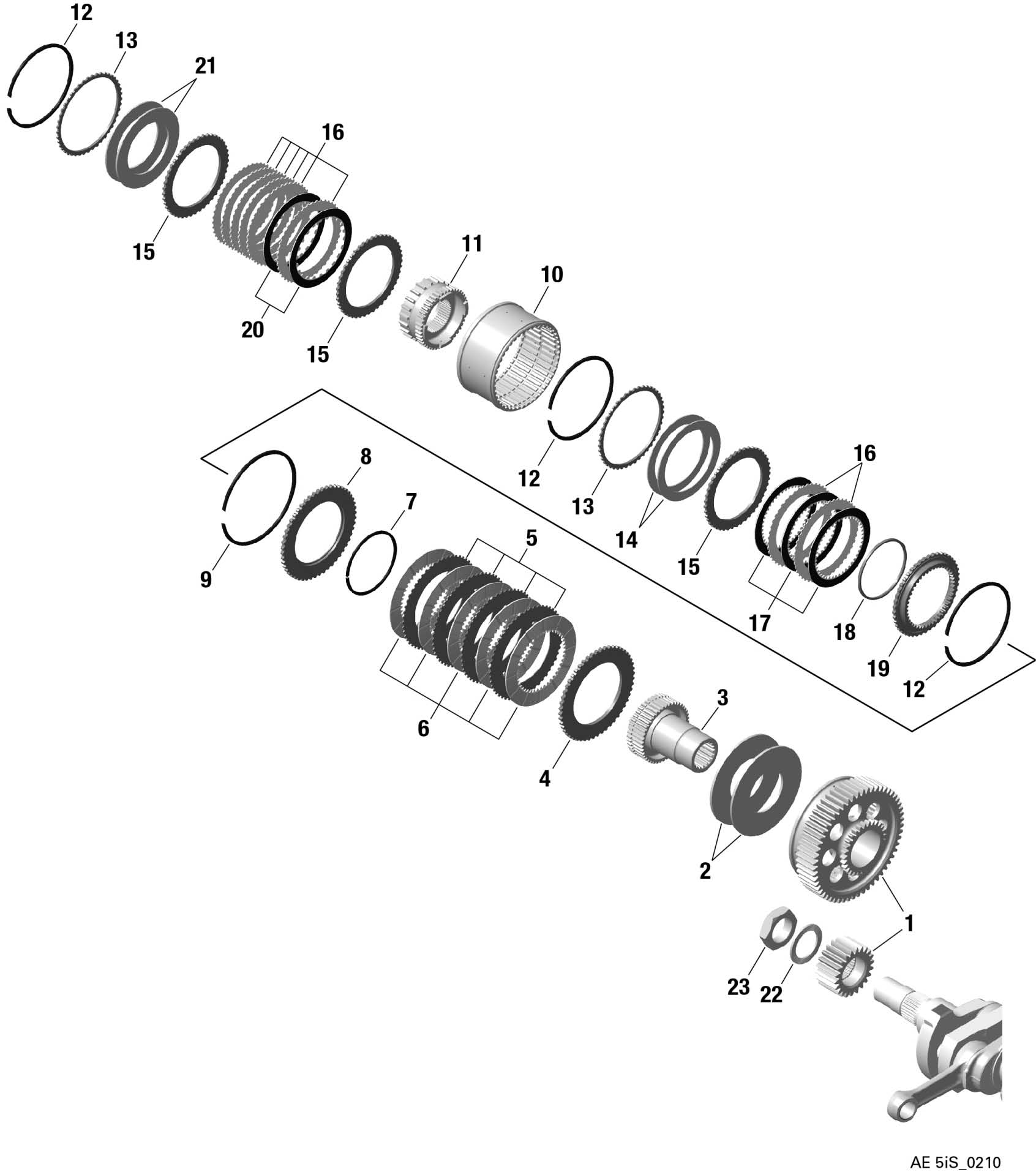

fig. 72-10-00-b
OVERLOAD CLUTCH For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1-9 | 958413 | OVERLOAD CLUTCH ASSY. | 1 | 2664.2 | + |
| 1 | 886544 | GEAR SET I 2,54 | 1 | 2109.43 | + |
| 2 | 938092 | DISK SPRING 102X49X2,9 | 2 | 148.3 | + |
| 3 | 837231 | INTERMEDIATE SHAFT | 1 | 738.86 | + |
| 4 | 958400 | STEEL FRICTION PLATE 4,0 MM | 1 | 243.48 | + |
| 5 | 958160 | STEEL FRICTION PLATE 1,0 MM | 4 | 31.97 | + |
| 6 | 958174 | SINTER FRICTION PLATE 1,8 MM | 5 | 373.49 | + |
| 7 | 945080 | CIRCLIP SW 68 | 1 | 2.33 | + |
| 8 | 958402 | STEEL FRICTION PLATE 4,0 MM | 1 | 253.7 | + |
| 9 | 945075 | CIRCLIP SB 105 | 1 | 4.94 | + |
| 10–21 | 958418 | DAMPING CLUTCH ASSY. | 1 | 4693.79 | + |
| 10 | 958042 | CLUTCH DRUM | 1 | 686.47 | + |
| 11 | 958022 | CLUTCH HUB | 1 | 929.15 | + |
| 12 | 945070 | CIRCLIP SB 93 | 3 | 6.65 | + |
| 13 | 927021 | SUPPORT RING | 2 | 146.3 | + |
| 14 | 938098 | DISK SPRING 91,5X71X1,5 | 2 | 186.84 | + |
| 15 | 959420 | STEEL FRICTION PLATE 3,0 MM | 3 | 112.97 | + |
| 16 | 958931 | Rondelle friction limiteur de couple | 8 | 26.83 | + |
| 17 | 958991 | FRICTION PLATE 1,54 MM | 3 | 388.34 | + |
| 18 | 847895 | SPACER RING 69/64,1/3,0 | 1 | 58.68 | + |
| 19 | 958103 | DRIVING COLLAR | 1 | 358.63 | + |
| 20 | 958992 | FRICTION PLATE 1,54 MM | 2 | 356.06 | + |
| 21 | 938099 | DISK SPRING 91,5X60X2,1 | 2 | 182.42 | + |
| 22 | 845431 | FRICTION WASHER VS30 | 1 | 9.5 | + |
| 23 | 842579 | HEX. NUT M30X1.5 12MM, LH | 1 | 16.87 | + |
