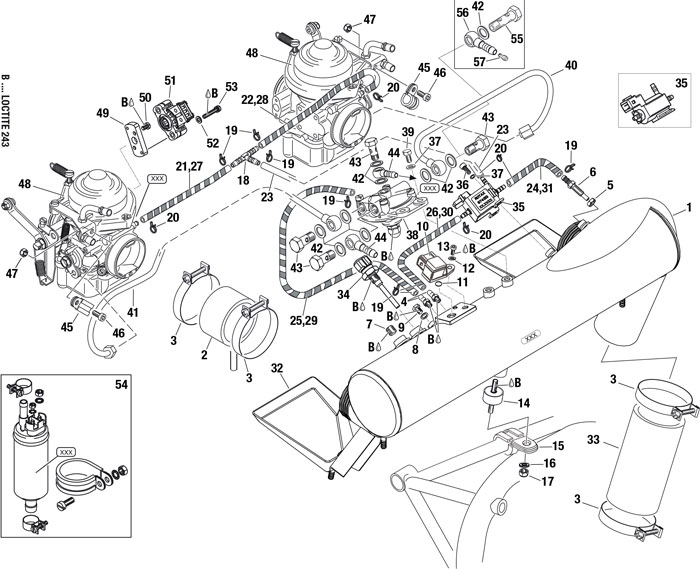

fig. 73-10-00-3

AIRBOX ASSY., 3-WAY SOLENOID VALVE ASSY., FUEL PRESSURE REGULATOR ASSY. For ROTAX 914UL

Click on Number to order Part

Fig. Part Number Description Qty Unit/Price Add to Cart
1-33 667574 AIRBOX ASSY. 1ai 2163.26 +
2 860985 CONNECTING HOSE 35 MM 2 10.33 +
3 853595 CLAMP 59 6 10.56 +
4 940551 HOSE NIPPLE M6 2 26.35 +
5 242032 HEX.NUT BM6 6.6 1 0.64 +
6 940555 HOSE NIPPLE M6 1 69.94 +
7 240481 PLUG SCREW 1/8-27NPT 1 5.51 +
8 230415 SEALING RING A 6X10 DIN 7603 1 1.24 +
9 641071 HEX.SCREW ISO 4017-M6X6-8.8 1 1.24 +
10 966502 AIRBOX PRESSURE SENSOR 1 304.12 +
11 430205 O-RING 6,4X1,8 1 4.51 +
12 244216 WASHER 6,2/14/1 1 2 +
13 840392 ALLEN SCREW ISO 4762 - M6x14 - 8.8 1 0.95 +
14 960151 RUBBER PUFFER 20X15XM6 1 57.11 +
15 853010 CABLE CLAMP 32/M6 1 10.1 +
16 927941 WASHER 6,0/12/1 3 0.58 +
17 842041 LOCK NUT M6 - 6.6 1 1.5 +
18 874270 T-PIECE 6-6-6 2 8.84 +
19 851370 CLAMP 8 7 4.25 +
20 951595 CLAMP 7,3 5 4.25 +
21-26 860660 HOSE 4X7 2y 39.17 +
27-31 966060 SPIRAL HOSE 6,5X8,5X0,6 1y 12.05 +
32 874680 DRIP TRAY SET 1g 228.77 +
33 860984 AIR INTAKE HOSE 250 ▒3 MM 1 54.05 +
34 966435 RESISTANCE THERMOMETER 1n 329.38 +
34 966430 RESISTANCE THERMOMETER 1b 368.94 +
35 874310 3-WAY SOLENOID VALVE 12V 1l 444.89 +
35 874313 3-WAY SOLENOID VALVE ASSY. 1l 166.27 +
35 881040 3-WAY-SOLENOID VALVE RETROFIT KIT 1l 295.18 +
36 840392 ALLEN SCREW ISO 4762 - M6x14 - 8.8 2 0.95 +
37 945831 LOCK WASHER DIN 128-A6-FST 4 0.17 +
38 887130 FUEL PRESSURE REGULATOR ASSY. 1 187.56 +
39 241187 HEX.SCREW ISO 4017 - M6X16 - 8.8 2 0.4 +
40 874290 FUEL HOSE ASSY. 1/3 1d 194.71 +
41 874280 FUEL HOSE ASSY. 2/4 1c 186.28 +
42 230150 SEALING RING A 10X14 DIN 7603 9 1.01 +
43 940874 Vis banjo M10x1x19 4 11.58 +
44 956314 HOSE NIPPLE 4/6 DIN7642 2 21.82 +
45 851116 CABLE CLAMP 5/M5 2 12.14 +
46 241842 ALLEN SCREW DIN 6912-M5X12-8.8 2 1.07 +
47 842032 LOCK NUT M5-6.6 2 1.55 +
49 861931 ADAPTER 1k 257.14 +
50 640181 SLOTTED HEAD SCREW M4X10 - MK 2f 2.81 +
51 966482 THROTTLE VALVE POSITION SENSOR 1k 357.54 +
52 244073 WASHER 4,3 2f 0.17 +
53 841030 COMBINED SCREW M4X22 2f 1.72 +
54 881365 FUEL PUMP SET PACKAGED 2 519.65 +
55 1m 0 +
56 956314 HOSE NIPPLE 4/6 DIN7642 1m 21.82 +
57 963143 IDLE JET 35 1 25.02 +
