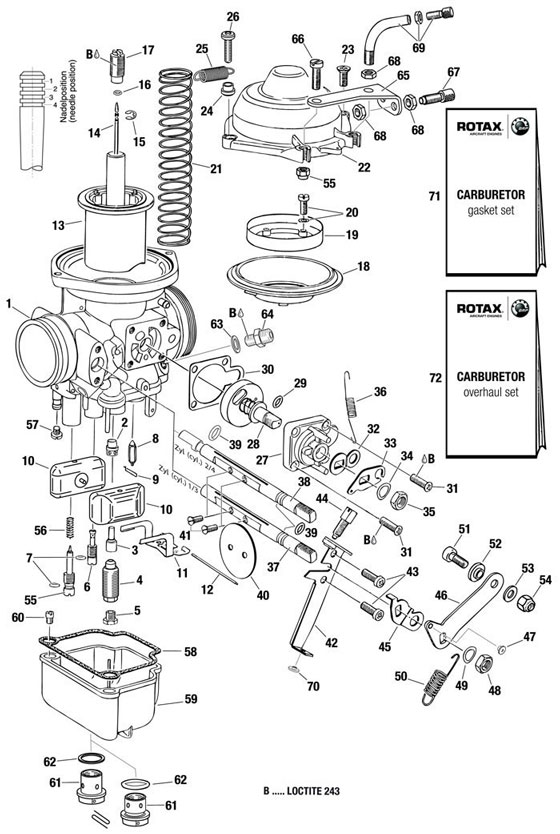

fig. 73-00-00-3

CARBURETOR - SINGLE PARTS 914 SERIES For ROTAX 914UL

Click on Number to order Part

Fig. Part Number Description Qty Unit/Price Add to Cart
1- 892520 CONSTANT DEPRESSION CARB. ASSY 1/3 1 1432.46 +
1- 892525 CONSTANT DEPRESSION CARB. ASSY 2/4 1 1780.76 +
2 961200 DIFFUSER 1 14.28 +
3 261607 NEEDLE JET 2,72 1 20.22 +
4 963135 MIXING TUBE 1 65.08 +
5- 268997 MAIN JET 156 1g 15.23 +
5- 268996 MAIN JET 158 1bg 15.44 +
5- 268985 MAIN JET 160 1h 23.74 +
5- 268993 MAIN JET 164 1bh 15.44 +
6 963143 IDLE JET 35 1 25.02 +
7 831713 O-RING DIN 3771-3,2X1,8 2f 3.9 +
8 261708 FLOAT NEEDLE VALVE W. VITON TIP 1f 40.48 +
9 261710 FLOAT NEEDLE CLIP 1 2.05 +
10 861189 FLOATS (PAIR) 1i 168.98 +
11 861192 FLOAT BRACKET 1 15.78 +
12 929702 PIN 1 3.24 +
13 961230 USE 961231 1 220.58 +
14 961215 JET NEEDLE 1 15.12 +
15 945786 CIRCLIP 1 1.62 +
16 950430 O-RING 2,5X1,5-N 1 2.4 +
17 961293 FIXATION SCREW 1e 18.43 +
18 861116 DIAPHRAGM 1 74.69 +
19 961241 RETAINING RING 1 40.69 +
20 841210 COMBINED SCREW M4X12 4 1.72 +
21 938365 THROTTLE VALVE SPRING 1 19.43 +
22 961250 CHAMBER TOP 1 108.5 +
23 841341 COUNTERSUNK SCREW M5x12 DIN 966 1 1.01 +
24 847910 DISTANCE SLEEVE 1 19.46 +
25 838242 SPRING 1 13.52 +
26 640251 OVAL HEAD SCREW M5x20 DIN 7985 1 0.96 +
27 961280 Carter starter carburateur BING 912/914 1 33.01 +
28- 961273 CHOKE VALVE ASSY. 1/3 1 146.1 +
28- 961278 CHOKE VALVE ASSY. 2/4 1 146.1 +
29 950420 O-RING 5X1,5-N 1 5.09 +
30 950030 GASKET 1 3.54 +
31 841360 SLOTTED HEAD SCREW M4X14 4 1.32 +
32 848241 CHOKE LEVER INSIDE 1 6.12 +
33 848245 CHOKE LEVER OUTSIDE 1 6.32 +
34 845035 SPRING WASHER 8,3/13,6/0,4 2 5.69 +
35 942290 HEX.NUT M8X1 2 2.14 +
36 938286 RETURN SPRING 1 9.46 +
37 963992 THROTTLE SHAFT 1a 38.39 +
38 963994 THROTTLE SHAFT 1b 99.12 +
39 950020 O-RING 6X1,9 2j 4.76 +
40 963666 THROTTLE VALVE 1 14.06 +
41 941200 SLOTTED HEAD SCREW M3X6 2 1.51 +
42- 961262 CABLE SUPPORT ASSY. 1 30.76 +
42- 961267 CABLE SUPPORT ASSY. 1 30.76 +
43 241212 Vis m 4 x 10 mm, 2 0.37 +
44 963162 THROTTLE VALVE STOP SCREW 1 6.32 +
45- 848232 STOP LEVER 1 7.66 +
45- 848230 STOP LEVER 1 7.67 +
46-47 963026 THROTTLE VALVE LEVER RIGHT ASSY. 15.34 +
46-47 963021 THROTTLE VALVE LEVER LEFT ASSY. 15.34 +
47 963015 SLEEVE 1 9.46 +
48 942290 HEX.NUT M8X1 1 2.14 +
49 845035 SPRING WASHER 8,3/13,6/0,4 1 5.69 +
50 938288 RETURN SPRING 1 9.78 +
51 241847 BTR serre câble gaz moteur 912 1 12.85 +
52 847741 GRADUATED SLEEVE 1 11.14 +
53 827801 WASHER ISO 10673 - N - 6 - 200 HV 1 0.28 +
54 842032 LOCK NUT M5-6.6 2 1.55 +
55 961222 IDLE MIXTURE SCREW 1 31.63 +
56 239463 COMPRESSION SPRING 1f 2.1 +
57 941740 SLOTTED HEAD SCREW M3,5X5 1 1.36 +
58 830721 GASKET 1 21.17 +
59-60 963237 FLOAT CHAMBER ASSY 2/4 1 91.4 +
59-60 963235 FLOAT CHAMBER ASSY 1/3 1 88.46 +
60- 268758 JET 85 1 14.58 +
60- 268762 JET 105 1d 14.41 +
60- 268763 JET 130 1d 14.41 +
60- 268765 JET 140 1d 14.41 +
61-62 963281 ATTACHMENT SCREW ASSY. 1f 114.48 +
62 631771 O-RING DIN 3771-15,6X1,78-N, FPM 80 1f 11.82 +
63 950141 SEALING RING A 8X13 DIN 7603 1 1.15 +
64 941853 FUEL LINE CONNECTOR 1 17.38 +
65- 851072 SUPPORT 1/3 1 24.55 +
65- 851074 SUPPORT 2/4 1 24.55 +
66 240761 SLOTTED HEAD SCREW M5X16 1 2.27 +
67 241440 ADJUSTMENT SCREW M6X0,75 1 5.82 +
68 942541 HEX. NUT M6X0,75 HIGHT 3 MM 3 1.25 +
69 861640 BENT TUBE ASSY. 1 31.31 +
70 963010 SLEEVE 1 9.46 +
71 996947 Pochette de joints carburateurs 914 1k 47.63 +
72 889558 Kit de révision carburateur 914 pour 1 carburateur 1l 203.23 +
