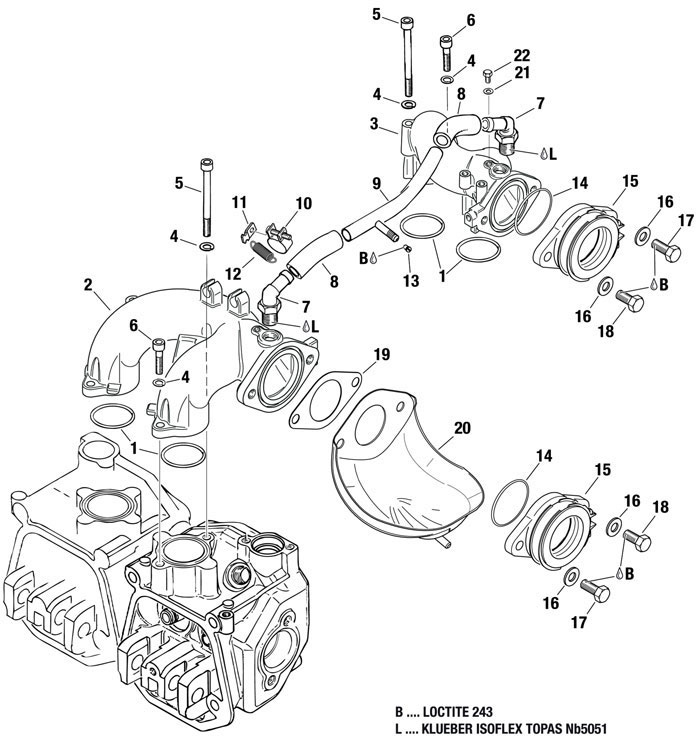

fig. 73-10-00-1

INTAKE MANIFOLD, COMPENSATING TUBE ASSY., RUBBER FLANGE ASSY. For ROTAX 912ULS

Click on Number to order Part

Fig. Part Number Description Qty Unit/Price Add to Cart
1 230910 O-RING DIN 3771-34X2-N, FPM 75 4 11.83 +
2 867932 INTAKE MANIFOLD 2/4 1al 578.54 +
3 867935 INTAKE MANIFOLD 1/3 1kl 578.54 +
4 827962 WASHER DIN 125-A 6,4 - St 8 0.22 +
5- 4d 0 +
5- 240531 Voir 240533 4 0 +
6 840866 ALLEN SCREW ISO 4762 - M6x25 - 8.8 4 1.16 +
7 922242 ANGULAR TUBE 1/4-18NPT 2 19.08 +
8- 956143 TUBE 66 MM 2j 6.79 +
8- 956141 TUBE 81 MM 2j 13.25 +
8- 956142 LOW PRESSURE HOSE OLN(E) 2i 85.04 +
9 924541 COMPENSATING TUBE ASSY. 1j 137.09 +
10 853515 CLAMP 16/9 2 4.68 +
11 953400 BRACKET 2 4.28 +
12 838242 SPRING 2 14.63 +
13 940980 SCREW M3,5 1 14.4 +
14- 230290 O-RING 44-2 2b 8.17 +
14- 230300 O-RING 47-2 2 6.5 +
15 267789 RUBBER FLANGE ASSY. 2f 88.16 +
16 250311 Rondelle M8,4 4 0.31 +
17 940483 HEX. SCREW ISO 4017 - M8X30 - 8.8 2j 1.39 +
18 240277 HEX. SCREW ISO 4017 - M8X25 - 8.8 2j 1.27 +
19 931640 GASKET 2e 13.82 +
20 874300 DRIP TRAY 2g 70.37 +
21 230415 SEALING RING A 6X10 DIN 7603 2 1.33 +
22 641071 HEX.SCREW ISO 4017-M6X6-8.8 2 1.33 +
