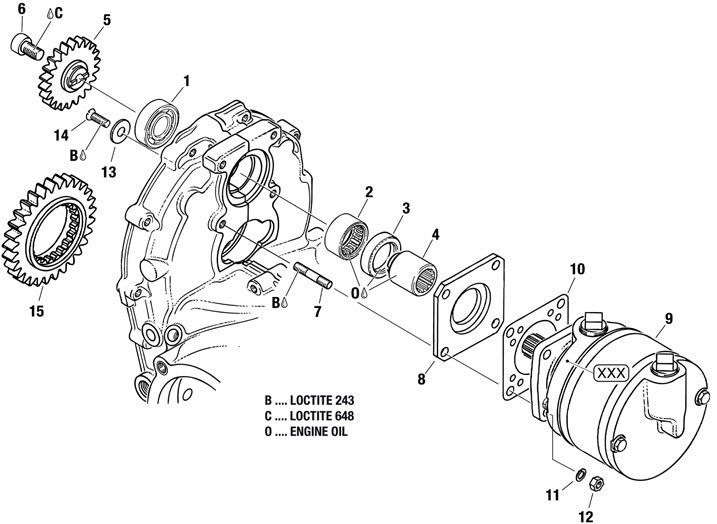

fig. 37-10-00

VACUUM PUMP WITH DRIVE For ROTAX 912ULS

Click on Number to order Part

Fig. Part Number Description Qty Unit/Price Add to Cart
1-8 881690 VACUUM PUMP DRIVE RETROFIT KIT AR 769.08 +
1 832362 Roulement de pompe à vide 1 36.14 +
2 232925 NEEDLE SLEEVE 22X28X12 1 37.82 +
3 831265 OIL SEAL AS 22X32X7 1 51.22 +
4 847776 Entraînement de pompe à vide 912 1 324.26 +
5 834245 VACUUM PUMP GEAR 22 T 1 283.18 +
6 941527 ALLEN SCREW M8X14 DIN 6912 1 27.54 +
7 941080 STUD M6X20/10 4 5.53 +
8 810170 ATTACHMENT FLANGE 1 211.3 +
11 827962 WASHER DIN 125-A 6,4 - St 4 0.22 +
12 242211 Ecrou M 6 4 0.31 +
13 227280 THRUST WASHER 1 7.55 +
14 940316 COUNTERSUNK SCREW M5X12-5.8 1 0.47 +
15 834232 DRIVE GEAR 29 T. 1 247.98 +
