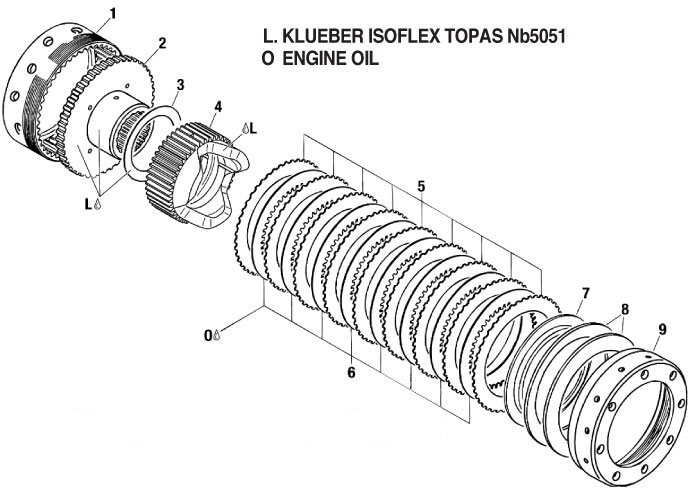

fig. 72-10-00-3
OVERLOAD CLUTCH For ROTAX 912ULS
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | 958912 | CLUTCH DRUM | 1c | 792.5 | + |
| 2 | 958905 | CLUTCH HUB | 1 | 435.46 | + |
| 3 | 944080 | THRUST WASHER 45,2/60/1 | 1 | 12.97 | + |
| 4- | 958920 | DOG HUB | 1 | 426.17 | + |
| 4- | 958927 | DOG HUB 30░ | 1 | 412.56 | + |
| 5 | 958931 | Rondelle friction limiteur de couple | 9 | 26.83 | + |
| 6 | 958944 | Sinter friction plate 1,8 mm | 8 | 67.56 | + |
| 7 | 958951 | SUPPORT RING | 1 | 126.73 | + |
| 8 | 838161 | DISK SPRING 100X76X2,7 | 2 | 97.43 | + |
| 9 | 842644 | COLLAR NUT M102X1,5 | 1c | 327.08 | + |
