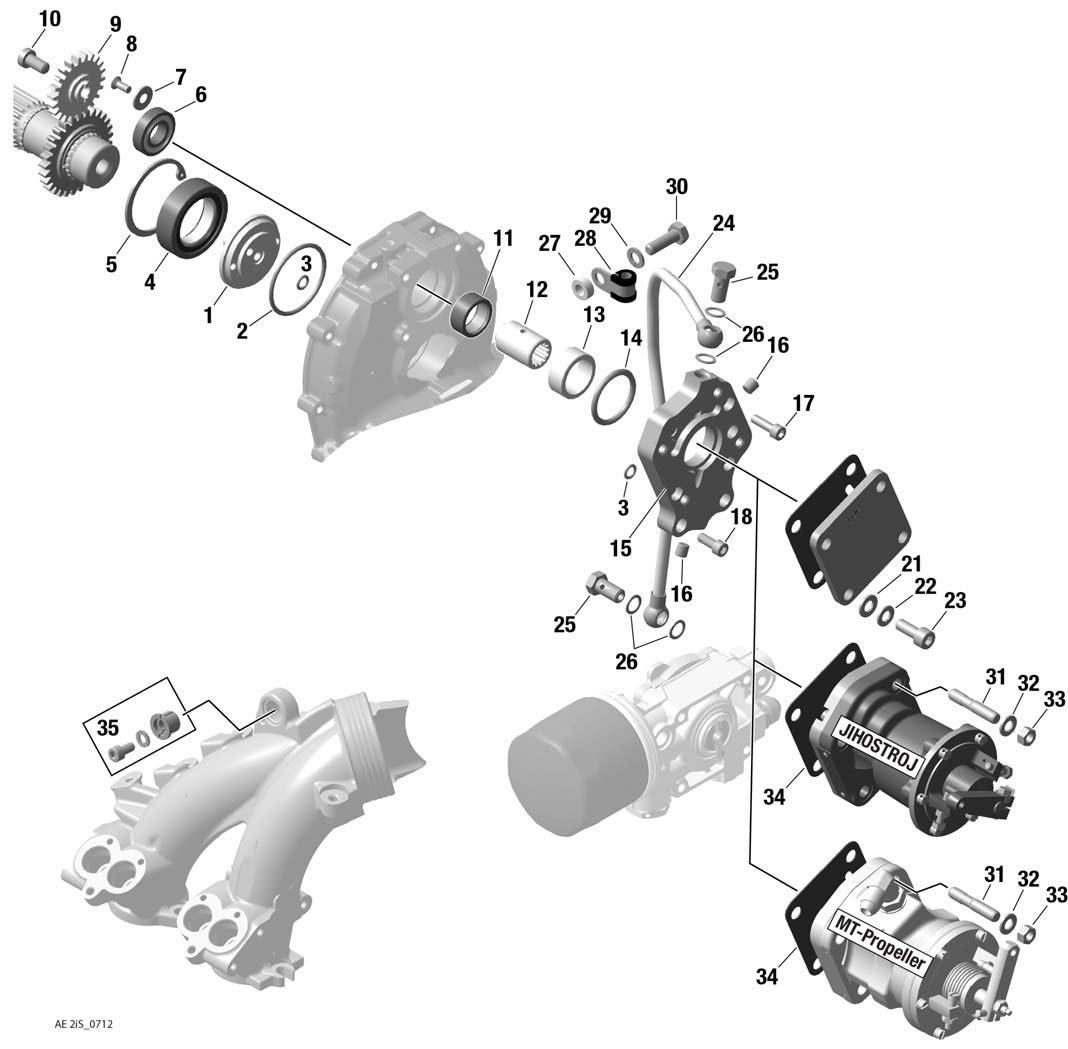

fig. 61-20-00-1
HYDR. GOVERNOR ARRANGEMENT FOR CONSTANT SPEED PROPELLER For ROTAX 912IS
Click on Number to order Part

Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
---|---|---|---|---|---|
3 | 830415 | Joint torique goujon cylindre 912 | 2 | 5.53 | + |
6 | 832362 | Roulement de pompe à vide | 1 | 36.14 | + |
9 | 834245 | Pignon de pompe à vide | 1 | 236.88 | + |
10 | 941521 | Vis M 8 X 16 gouverneur hydraulique | 1 | 1.03 | + |
11 | 232925 | Roulement aiguille pompe à vide | 1 | 31.8 | + |
13 | 847802 | Entretoise pas variable | 1 | 26.29 | + |
14 | 950380 | Joint torique pas variable | 1 | 9.56 | + |
15 | 810294 | Platine support gouverneur hydraulique | 1 | 645.54 (1) | + |
16 | 941611 | SCREW PLUG M8X1 | 2 | 4.64 | + |
17 | 241935 | BTR M 6 x 20 mm, | 4 | 0.41 (1) | + |
18 | 241236 | BTR M 6 x 16 mm, | 2 | 0.48 | + |
19 | 931770 | Joint plaque obturatrice gouverneur | 1 | 10.7 | + |
20 | 926231 | Couvercle platine support gouverneur hydraulique | 1 | 120.48 | + |
21 | 250311 | Rondelle M8,4 | 4 | 0.31 | + |
22 | 945832 | Rondelle fendue diamètre 8 mm, | 4 | 0.17 (1) | + |
23 | 240072 | BTR M 8 x 20 mm, | 4 | 1 (1) | + |
24 | 956460 | Tube huile alimentation gouverneur | 1 | 293.84 | + |
26 | 230150 | Joint cuivre 10 x 14 | 4 | 0.91 | + |
28 | 853418 | Arrêt de câble | 1 | 20.29 | + |
30 | 240277 | Vis m 8 x 25 mm | 1 | 1.06 (1) | + |
31 | 840711 | Goujon M8 x 21/20 | 4 | 10.14 | + |
