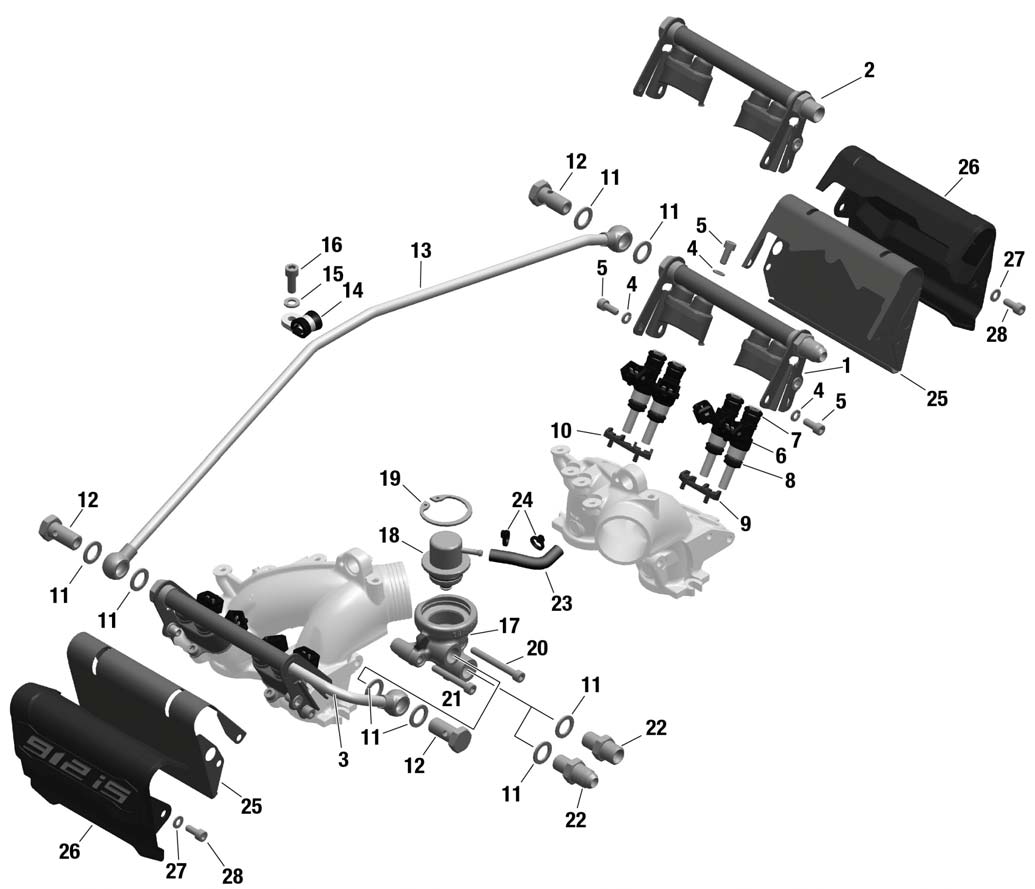

fig. 73-10-00-3

FUEL INJECTOR, FUEL RAIL, PRESSURE REGULATOR, FUEL RAIL COVER For ROTAX 912IS

Click on Number to order Part

Fig. Part Number Description Qty Unit/Price Add to Cart
1 874795 FUELRAIL RIGHT UNF 1a 340.13 +
2 874799 Rampe de carburant droite métrique 1b 340.13 +
3 874797 Rampe de carburant culasses 2/4 1 271.84 +
4 945830 Rondelle fendue diamètre 5 mm, 11 0.17 +
5 640542 ALLEN SCREW ISO 4762 - M5x12 - 8.8 11 0.24 +
6-8 874780 Injecteur 912/915 iS 8 188.38 +
7 831060 8 11.21 +
8 831050 O-RING 8,54X3,1 VITON B70 8 5.3 +
9 860042 DAMPER LEFT 2 2.72 +
10 860040 DAMPER RIGHT 2 2.72 +
11 250640 joint cuivre 12X18-CU 7 1.48 +
12 641541 BANJO BOLT - DIN 7643 - 8 - 3 3 18.34 +
13 874802 FUEL LINE ASSY, 1 154.3 +
14 853412 Collier câble 8/m6 1 4.73 +
15 827962 Rondelle plate 6,4 mm 1 0.19 +
16 241239 BTR M 6 X 16 inox 1 2.72 +
17 874770 Carter régulateur pression essence 912 iS 1 100.43 +
18 889262 Régulateur de pression essence 912 iS 1 352.4 +
19 845650 Clips régulateur de pression essence 912i/915i 1 1.42 +
20 941791 BTR M 5 X 45 mm 1 0.98 +
21 841502 BTR 5 X 35 mm 1 0.73 +
22- 840700 Raccord UNF 9/16/M 12x1.5 régulateur pression essence 912/915 iS 1 60.36 +
22- 856821 Raccord métrique M 14x1,5 / M12x1.5 régulateur pression essence 912/915 iS 1 18.73 +
23 960631 Durite régulateur pression essence 912i/915i 60 mm+/-3 1 5.72 +
24 866718 TIE WRAP 94x2,5 mm 2 0.25 +
25 975090 HEAT SHIELD 2 6.61 +
26 975060 COVERING FUELRAIL 2 10.44 +
27 939445 Spring Washer 12X5.2X0.5 4 0.26 +
28 640542 ALLEN SCREW ISO 4762 - M5x12 - 8.8 4 0.24 +
