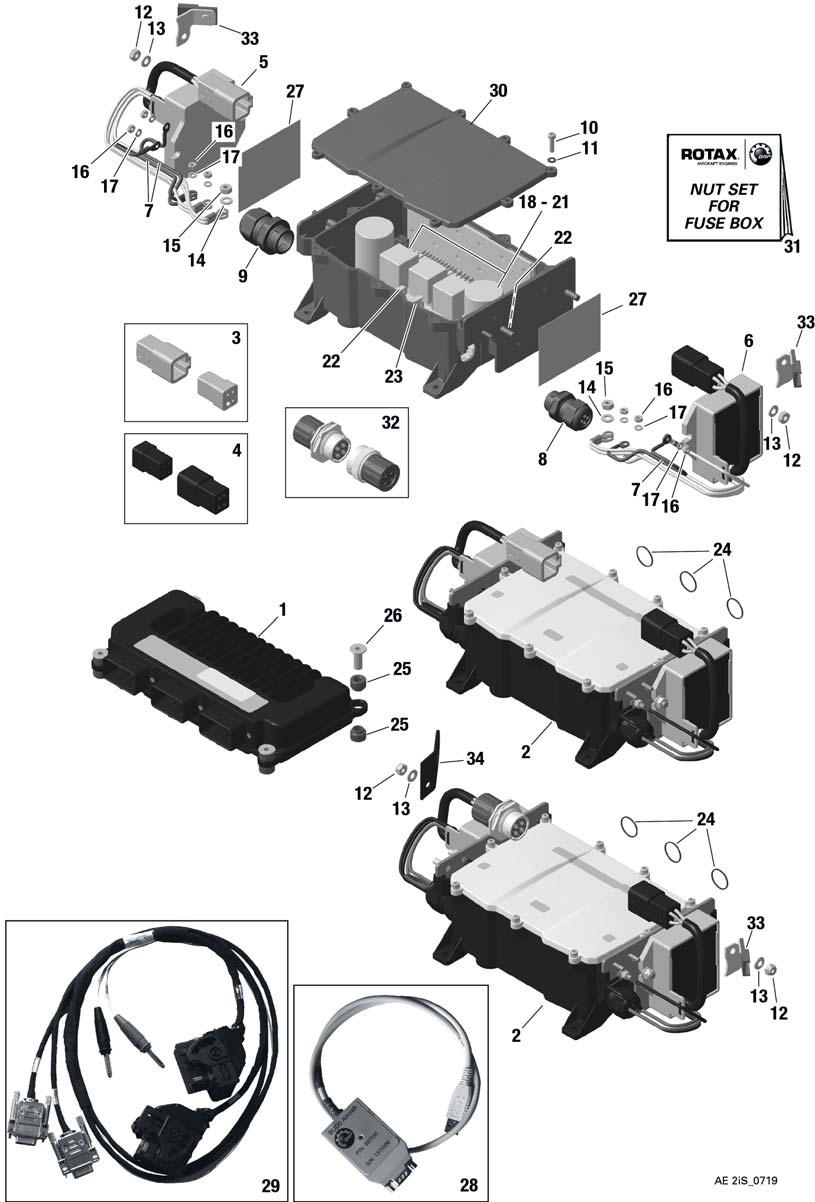

fig. 76-10-00-1
ENGINE CONTROL UNIT, FUSE BOX REGULATOR For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | 665568 | ECU 912 iS Sport | 1 | 7285.79 | + |
| 2 | 881321 | FUSE BOX PACKAGED | 1 | 4074.19 | + |
| 3 | 866422 | CONNECTOR SET GREY | 1d | 114.84 | + |
| 4 | 866420 | CONNECTOR SET BLACK | 1d | 146.52 | + |
| 5 | 864395 | REGULATOR B-CONNECTOR GREY | 1 | 429.8 | + |
| 6 | 864392 | REGULATOR A-CONNECTOR BLACK | 1 | 433.45 | + |
| 7 | 866440 | MASS CABLE ASSY. | 3 | 11.59 | + |
| 8 | 201370 | SKINTOP CLICK 20 | 1 | 13.42 | + |
| 9 | 201375 | SKINTOP CLICK 25 | 1 | 13.42 | + |
| 10 | 840763 | ALLEN SCREW M4X16 ISO 4762-A2-70 | 9 | 45.91 | + |
| 11 | 827230 | PLASTIC WASHER M4 | 9 | 99.36 | + |
| 12 | 842042 | LOCK NUT M6 | 4 | 2.5 | + |
| 13 | 244213 | WASHER 6,4 | 4 | 1.02 | + |
| 14 | 927573 | WASHER 5,3 DIN 125 | 2 | 0.28 | + |
| 15 | 842033 | LOCK NUT M5 | 2 | 0.28 | + |
| 16 | 242538 | LOCK NUT DIN 985-M4-A2 | 7 | 0.28 | + |
| 17 | 244078 | WASHER 4,3 DIN 134 | 7 | 7.3 | + |
| 18- | 866450 | MINI-FUSE 2A | 2 | 3.24 | + |
| 19- | 866452 | MINI-FUSE 5A | 10 | 3.24 | + |
| 20- | 866454 | MINI-FUSE 7,5A | 2 | 3.24 | + |
| 21- | 866456 | MINI-FUSE 10A | 5 | 5.45 | + |
| 22- | 866490 | ATO-FUSE 20A | 1 | 3.24 | + |
| 23- | 866492 | ATO-FUSE 35A | 1 | 3.24 | + |
| 24 | 931110 | SEALING RING | 3 | 14.52 | + |
| 25 | 201460 | RUBBER SLEEVE | 8 | 25.37 | + |
| 26 | 947540 | SPACER | 4 | 30.38 | + |
| 27 | 282870 | HEAT TRANSFER PAD 65x80x0,5MM | 2 | 25.08 | + |
| 28 | 864021 | B.U.D.S. SET LEVEL 1 | 1 | 1739.99 | + |
| 29 | 864280 | SERVICE WIRING HARNESS ASSY. | 1 | 314.75 | + |
| 30 | 201690 | COVER, FUSE BOX | 1 | 191.81 | + |
| 31 | 881555 | NUT SET FUSE BOX | 1f | 146.78 | + |
| 32 | 481510 | CONNECTOR SET STATOR LANE B | 1 | 632.71 | + |
| 33 | 951983 | CONNECTOR BRACKET ASSY. | 1 | 36 | + |
| 34 | 951981 | CONNECTOR BRACKET | 1i | 61.61 | + |
