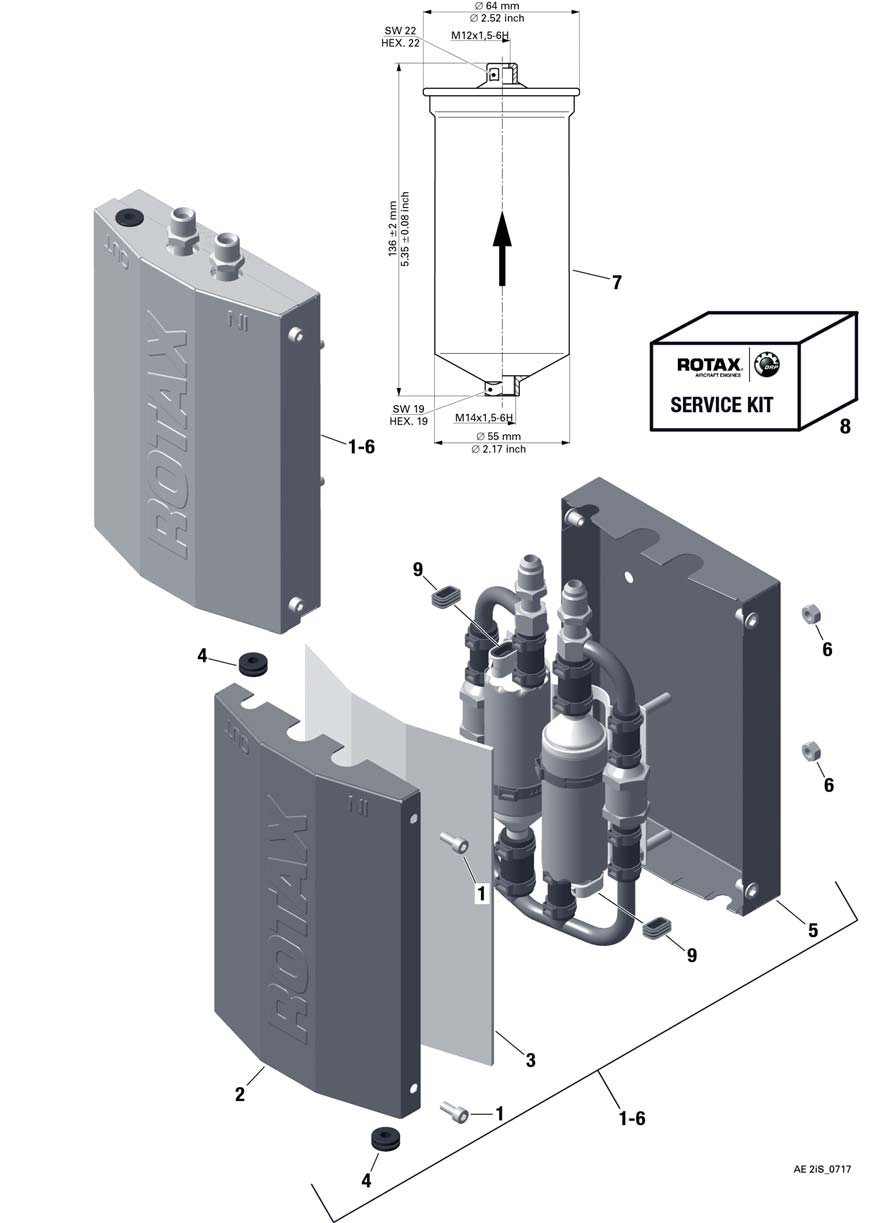

fig. 73-10-00-4

FUEL PUMP ASSY. COVER For ROTAX 912IS

Click on Number to order Part

Fig. Part Number Description Qty Unit/Price Add to Cart
 1-6 A889697 Pompes à essence 912 iS UNF 1ad 1025.95 (1) +
1-6 A889699 Pompes à essence 912 iS métrique 1bd 1025.95 (1) +
1 640542 ALLEN SCREW ISO 4762 - M5X12 - 8.8 4 0.24 +
2 911790 COVER 1 58.15 +
3 975055 HEAT PROTECTION MAT 1 11.14 +
4 201160 RUBBER GROMMET 2 2.76 +
5 911700 HOUSING 1 64.75 +
6 242032 HEX.NUT BM6 6.6 8 0.59 (1) +
7 874060 FILTRE ESSENCE A TAMIS FIN 6,5 MICRONS 1c 47.04 +
8 889537 KIT MAINTENANCE POMPES A ESSENCES 1 113.42 +
9 850620 CONNECTOR GASKET 2 7.46 +
