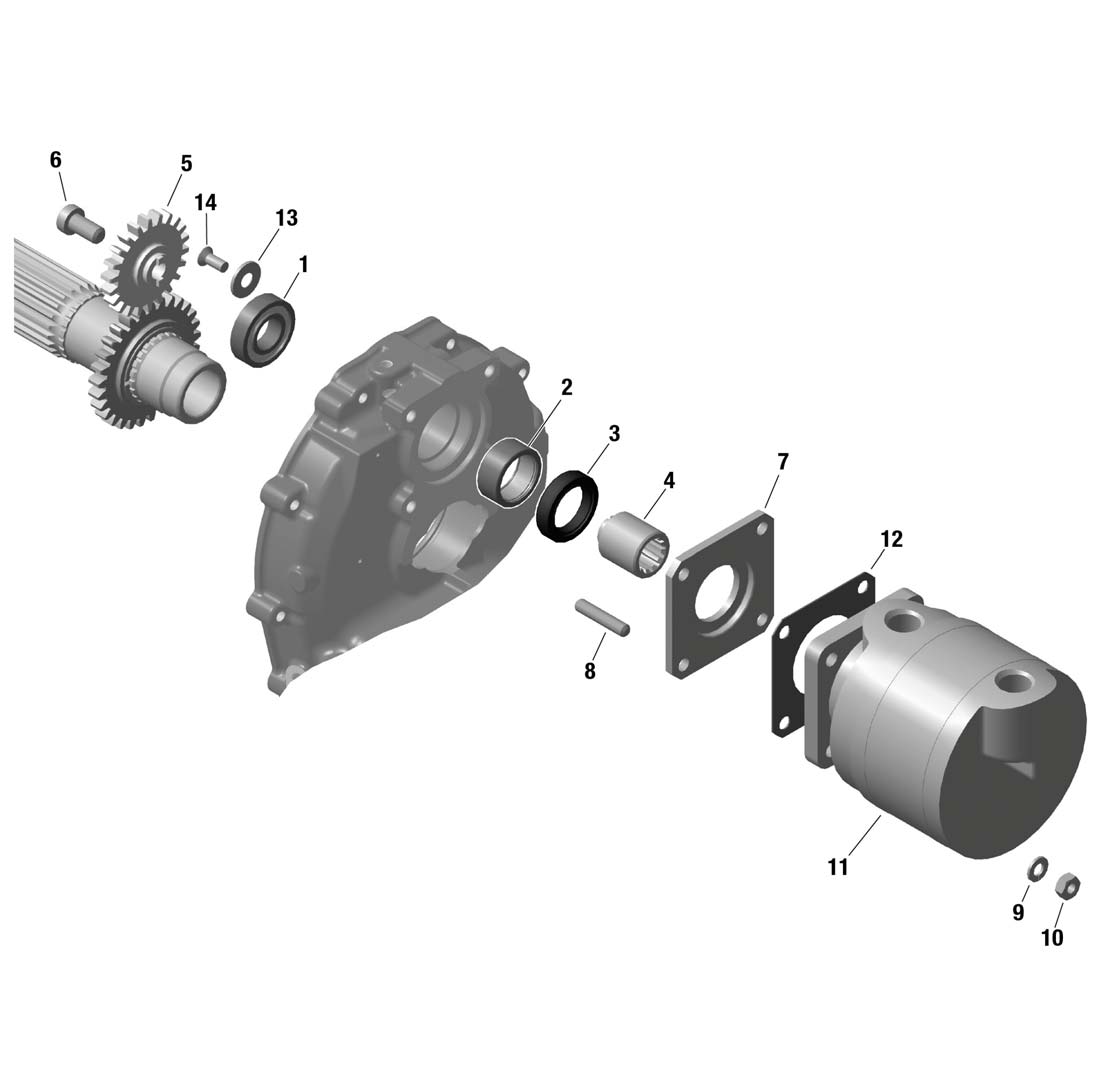

fig. 37-10-00-1
VACUUM PUMP WITH DRIVE For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1-8 | A881690 | Kit entraînement pompe à vide | 1 | 605.21 (1) | + |
| 1 | 832362 | Roulement de pompe à vide | 1 | 36.14 | + |
| 2 | 232925 | NEEDLE SLEEVE 22X28X12 | 1 | 35 | + |
| 3 | 831265 | OIL SEAL AS 22X32X7 | 1 | 47.36 | + |
| 5 | 834245 | VACUUM PUMP GEAR 22 T | 1 | 261.95 | + |
| 6 | 941527 | ALLEN SCREW M8X14 DIN 6912 | 1 | 25.49 | + |
| 7 | 810170 | ATTACHMENT FLANGE | 1 | 195.46 | + |
| 8 | 941080 | STUD M6X20/10 | 4 | 5.11 | + |
| 9 | 945831 | LOCK WASHER DIN 128-A6-FST | 4 | 0.17 (1) | + |
| 10 | 242211 | Ecrou M 6 | 4 | 0.31 | + |
