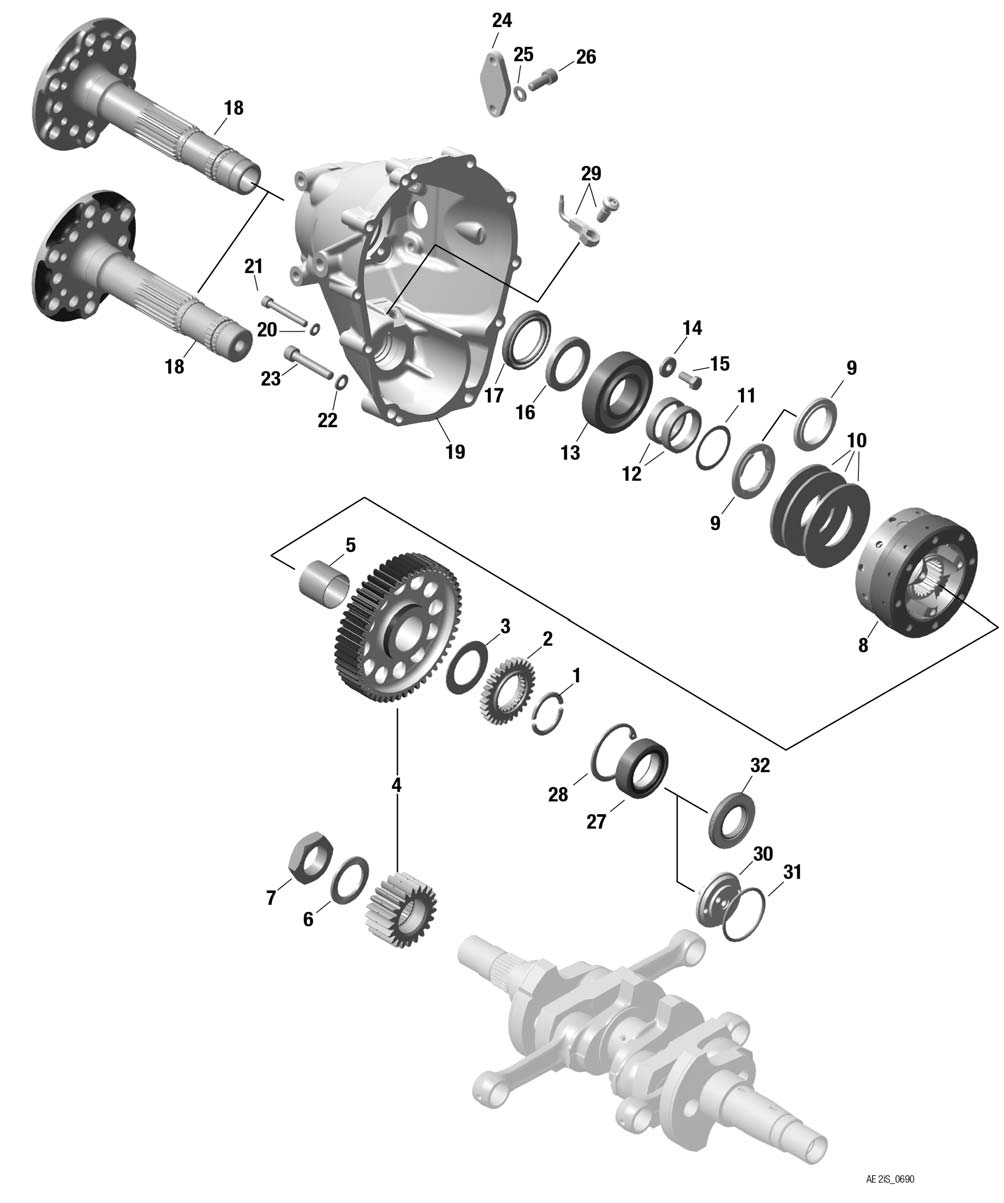

fig. 72-10-00-1

PROPELLER GEAR ASSY. WITH OVERLOAD CLUTCH For ROTAX 912IS

Click on Number to order Part

Fig. Part Number Description Qty Unit/Price Add to Cart
1-28 893340 GEARBOX WITH CLUTCH I 2,43-2 500NM 1b 3363.82 +
1-28 893345 GEARBOX WITH CLUTCH I 2,43-3 500NM 1b 3363.82 +
1 926035 RING HALF 2 42.05 +
2 834232 DRIVE GEAR 29 T. 1 247.98 +
3 827992 THRUST WASHER 33,2/51/1,2 1 69.67 +
4 886518 GEAR SET I 2,43 1 1030.72 +
5 933362 BUSHING 31X33X29,8 1 62.62 +
6 845431 FRICTION WASHER VS30 1 8.8 +
7 842579 HEX. NUT M30X1.5 12MM, LH 1 15.6 +
8 996916 OVERLOAD CLUTCH ASSY. 600NM 1a 1736.54 +
9 847787 STEP COLLAR 1 51.79 (1) +
10 838216 DISK SPRING B80, 80X41X3 3 21.54 +
11 927401 SHIM 35,4/43/0,2 AR 2.3 +
11 927402 SHIM 35,4/43/0,5 AR 2.3 +
11 927403 SHIM 35,4/43/1,0 AR 2.65 +
12 847687 SPACER 35,2/42/8 2 45.59 +
13 832578 Roulement réducteur 912 & 912 iS 1 137.98 +
14 944320 WASHER 7,2/18,8/3 4 2.65 +
15 941760 HEX. SCREW M7X16 DIN 933 4 1.3 +
16 926022 SPACER RING 36/50/5,5 1 35.83 +
17 950470 OIL SEAL AS 40X55X7 FPM 1 67.82 +
18 937036 ARBRE D'HELICE 912/912I (VERSION 2) 1 993.34 (1) +
19 811958 GEAR COVER ASSY, 1 946.2 +
20 827962 WASHER DIN 125-A 6,4 - St 8 0.19 (1) +
21 241823 ALLEN SCREW ISO 4762 - M6x45 - 8.8 8 0.55 (1) +
22 944131 WASHER 8 ISO 7092-300 HV 2 1.08 +
23 841562 ALLEN SCREW ISO 4762 - M8x45 - 8.8 2 0.89 (1) +
24 926151 COVER 1 24.47 +
25 945832 LOCK WASHER DIN 128-A8-FST 2 0.17 (1) +
26 2 0 (1) +
27 232241 Roulement réducteur 912 et 912i 1 66.36 +
28 945820 RETAINING RING 52X2 1 3.91 +
29 950200 OIL SEAL AS 30X52X7 FPM 1 86.6 +
30 810301 OIL INLET FLANGE 1 213.05 +
31 430175 O-RING 46X3 1 13.09 +
