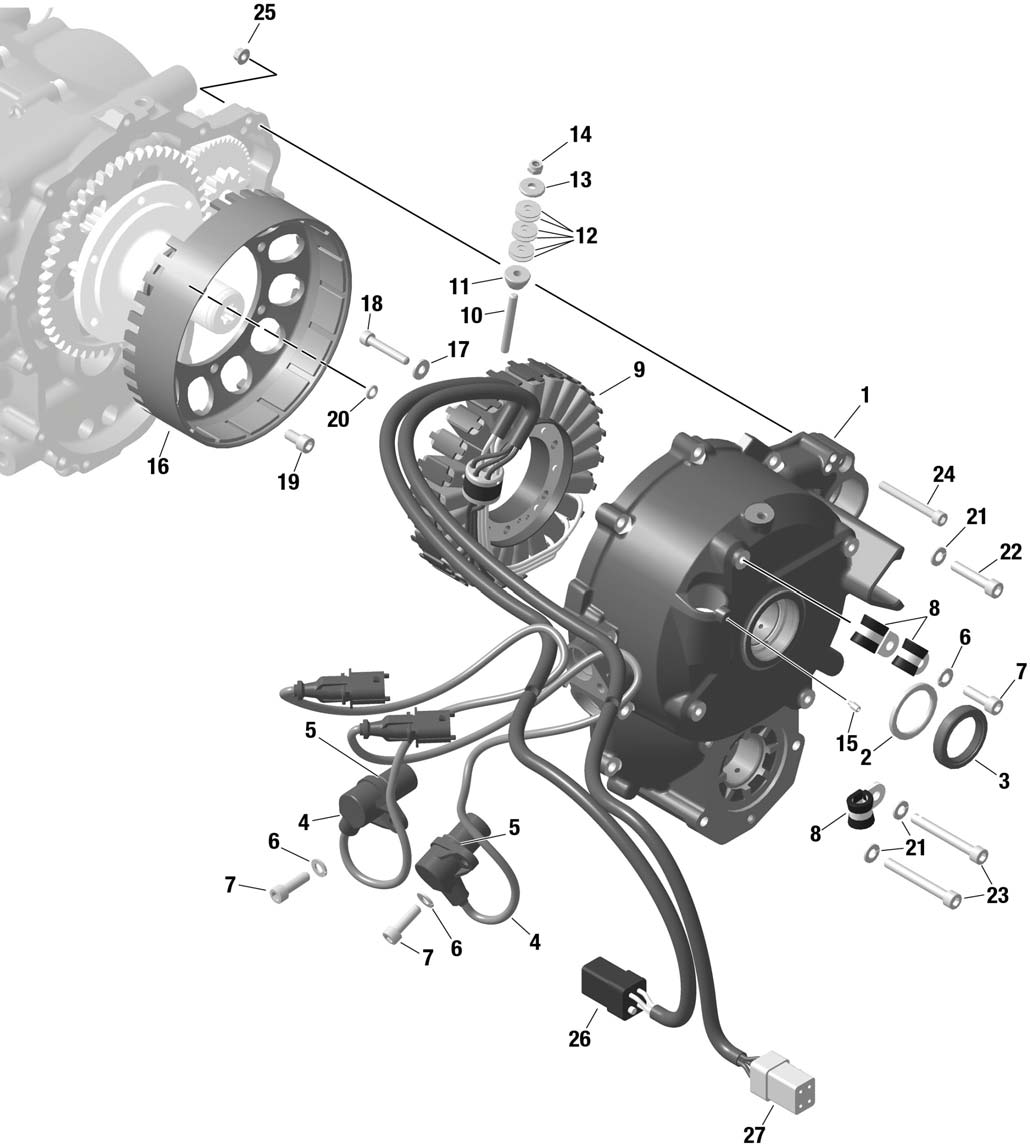

fig. 24-20-00-1

IGNITION HOUSING, STATOR, RECTIFIER REGULATOR, CRANKSHAFT POSITION SENSOR ASSY. For ROTAX 912IS

Click on Number to order Part

Fig. Part Number Description Qty Unit/Price Add to Cart
1 611594 IGNITION HOUSING ASSY. 1 2205.14 +
2 827220 WASHER 32/38/1,5 1 16.1 +
3 230427 Joint spi vilebrequin coté allumage 912 iS 1 6.07 +
4-5 966572 CRANKSHAFT POSITION SENSOR 2 209.82 +
5 431580 O-RING 17,17X1,78 FPM 70 2 6.67 +
6 945831 LOCK WASHER DIN 128-A6-FST 2 0.17 (1) +
7 241935 ALLEN SCREW ISO 4762 - M6x20 - 8.8 2 0.44 (1) +
8 853412 CABLE CLAMP 3 5.22 +
9 685062 STATOR ASSY. 1 961.58 (1) +
11 947510 DISTANCE SLEEVE 1 32.57 +
12 938080 DISK SPRING 15X5,2X0,7 6 1.55 +
13 827240 WASHER 5,1/15,5/2,5 1 25.34 +
14 842033 LOCK NUT M5 1 0.25 +
16 685070 MAGNETO FLYWHEEL ASSY. 1 671.42 +
17 827801 WASHER ISO 10673 - N - 6 - 200 HV 6 0.28 (1) +
18 940881 ALLEN SCREW M5X30 6 0.41 +
19 840036 ALLEN SCREW M6X12 DIN 912 6 1.55 +
20 831929 O-RING 5X2 1 3.96 +
21 827962 WASHER DIN 125-A 6,4 - St 7 0.19 (1) +
22 840887 ALLEN SCREW ISO 4762 M6X30 10.9 5 0.58 (1) +
23 241762 ALLEN SCREW ISO 4762 - M6x50 - 8.8 2 0.66 (1) +
24 941791 BTR M 5 X 45 mm 2 0.98 +
25 942311 HEX. NUT M5 2 18.96 +
