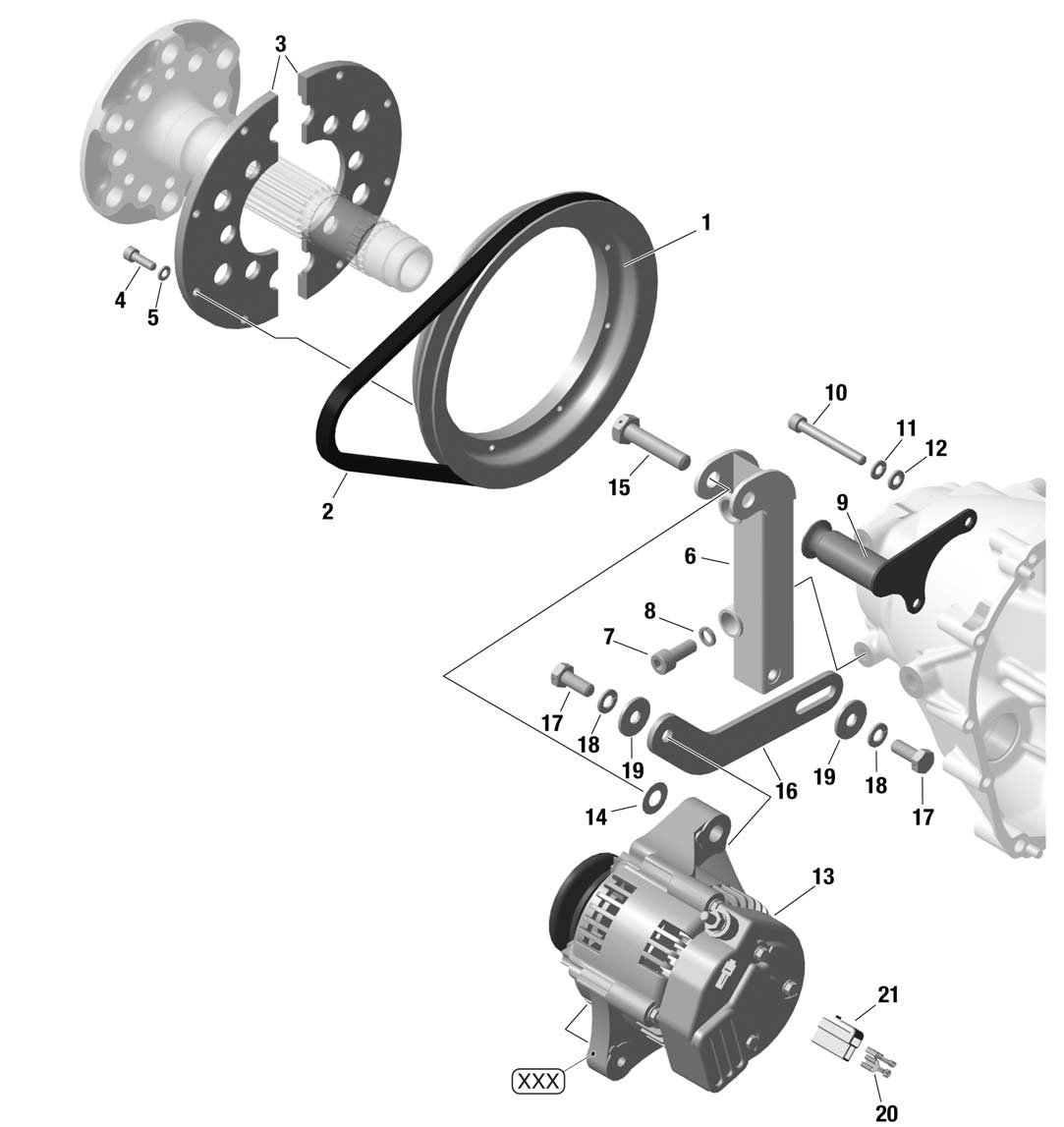

fig. 24-30-00-1
EXTERNAL GENERATOR F3A For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1-21 | A887254 | Alternateur 40 A/12V | 1 | 1256.81 (1) | + |
| 1 | 980590 | V-BELT PULLEY | 1 | 487.78 | + |
| 2 | 980400 | V-BELT 9,5X675 | 1 | 29.45 | + |
| 3 | 980605 | PULLEY CARRIER | 2 | 168.38 | + |
| 4 | 840514 | ALLEN SCREW ISO 4762 - M5x16 - 8.8 | 8 | 0.41 | + |
| 5 | 945830 | LOCK WASHER DIN 128-A5-FST | 8 | 0.17 | + |
| 6 | 953223 | ALTERNATOR BRACKET ASSY. | 1 | 237.02 | + |
| 7 | 240072 | ALLEN SCREW ISO 4762 - M8x20 - 8.8 | 2 | 1.12 | + |
| 8 | 845310 | LOCK WASHER VHZ 8 | 2 | 0.38 | + |
| 9 | 953233 | ALTERNATOR SUPPORT ASSY. | 1 | 295.34 | + |
| 10 | 241762 | ALLEN SCREW ISO 4762 - M6x50 - 8.8 | 2 | 0.66 | + |
| 11 | 945831 | LOCK WASHER DIN 128-A6-FST | 2 | 0.17 | + |
| 12 | 827962 | WASHER DIN 125-A 6,4 - St | 2 | 0.19 | + |
| 13 | 887251 | ALTERNATOR F3A | 1 | 2379.38 | + |
| 14 | 927952 | THRUST WASHER 10,1/20/0,5 | 1 | 4.13 | + |
| 15 | 941636 | HEX. SCREW M10X45-SK-DIN 931 | 1 | 13.58 | + |
| 16 | 953241 | TENSION BAR | 1 | 55.92 | + |
| 17 | 940596 | HEX. SCREW M8X20 | 2 | 11.34 | + |
| 18 | 945832 | LOCK WASHER DIN 128-A8-FST | 2 | 0.17 | + |
| 19 | 227936 | WASHER ISO 7093-1 - 8 - 200 HV | 2 | 1.5 | + |
| 20 | 864011 | FASTON CONNECTOR 6,3X0,8 | 2 | 1.08 | + |
| 21 | 265255 | CONNECTOR HOUSING 2-POLE | 1 | 7.13 | + |
