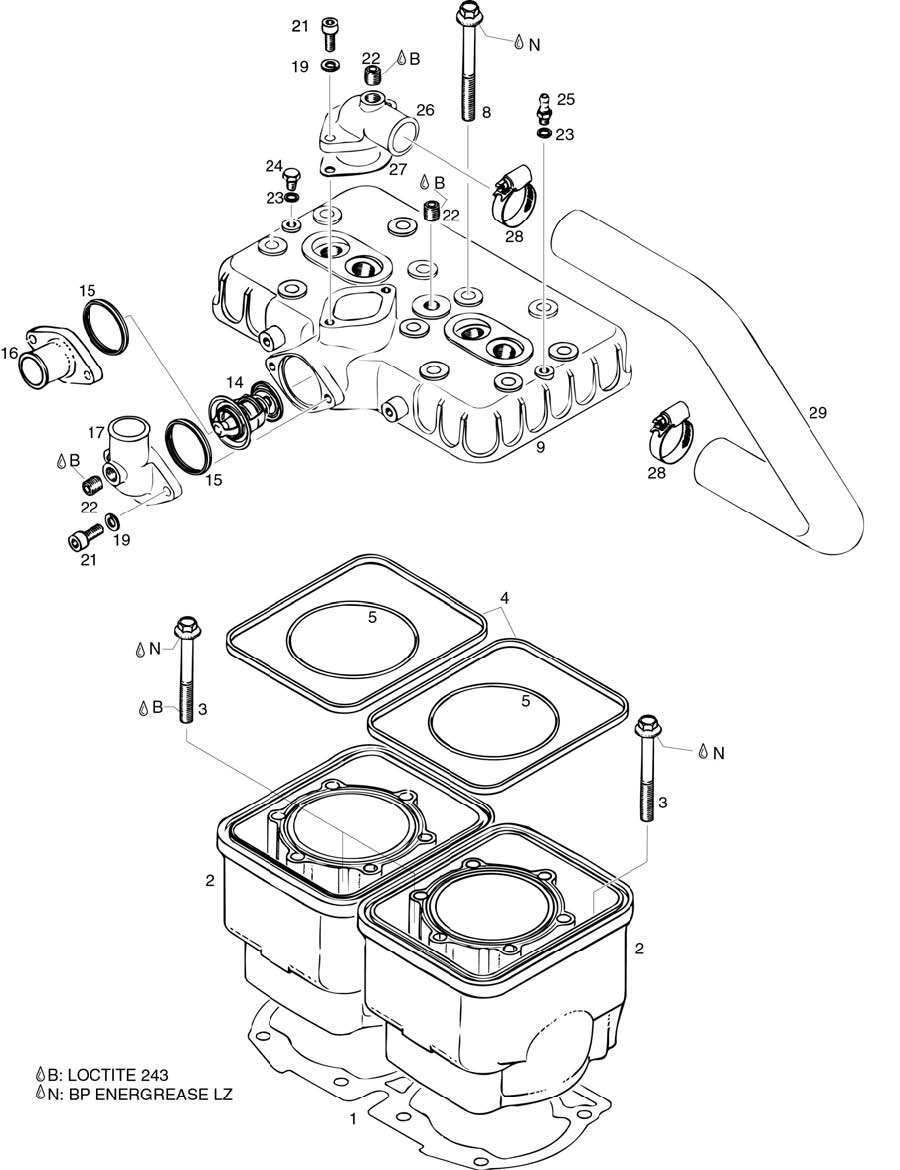

fig. 72-20-00-3
CYLINDER, CYLINDER HEAD For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | 850775 | DOUBLE GASKET 0,5 MM | 1 | 26.02 | + |
| 2 | 913448 | CYLINDER WITH SLEEVE | 2a | 1373.64 | + |
| 3 | 640952 | COLLAR HEX.SCREW M8X68,5 SW 11 | 8 | 4.87 | + |
| 4 | 850040 | RUBBER RING 152,5X2,5X5 | 2 | 8 | + |
| 5 | 850540 | O-RING DIN 3771-83X2-N, FPM75 | 2 | 25.44 | + |
| 8 | 841308 | COLLAR HEX SCREW M8X65 SW 11 | 12d | 6.36 | + |
| 9- | 913845 | Culasse 582 - Mod,99 | 1 | 954.67 | + |
| 9- | 913848 | CYLINDER HEAD M12X1,25 | 1 | 1141.82 | + |
| 14-15 | 922511 | THERMOSTAT WITH GASKET | 1 | 109.48 | + |
| 15 | 931270 | THERMOSTAT GASKET | 1 | 18.13 | + |
| 16 | 922025 | WATER OUTLET SOCKET | 1 | 35.15 | + |
| 17 | 922061 | BENT OUTLET SOCKET | 1 | 56.39 | + |
| 19 | 945831 | LOCK WASHER DIN 128-A6-FST | 2 | 0.17 | + |
| 20 | 242211 | Ecrou M 6 | 2 | 0.31 | + |
| 21 | 241939 | ALLEN SCREW M6X20 DIN 912 MK | 2 | 1.24 | + |
| 22 | 240483 | PLUG SCREW 1/8-27NPT | 3 | 8.17 | + |
| 23 | 230415 | SEALING RING A 6X10 DIN 7603 | 2 | 1.33 | + |
| 24 | 841581 | HEX. SCREW ISO4017-M6X8-8.8 | 1 | 0.49 | + |
| 25 | 940551 | HOSE NIPPLE M6 | 1 | 28.5 | + |
| 26 | 922063 | BENT OUTLET SOCKET | 1 | 56.14 | + |
| 27 | 850338 | GASKET | 1 | 7.37 | + |
| 28 | 951880 | CLAMP 20-32 | 2 | 6.17 | + |
| 29 | 922521 | MOLDED HOSE_25/180 DEGREE | 1 | 104.58 | + |
