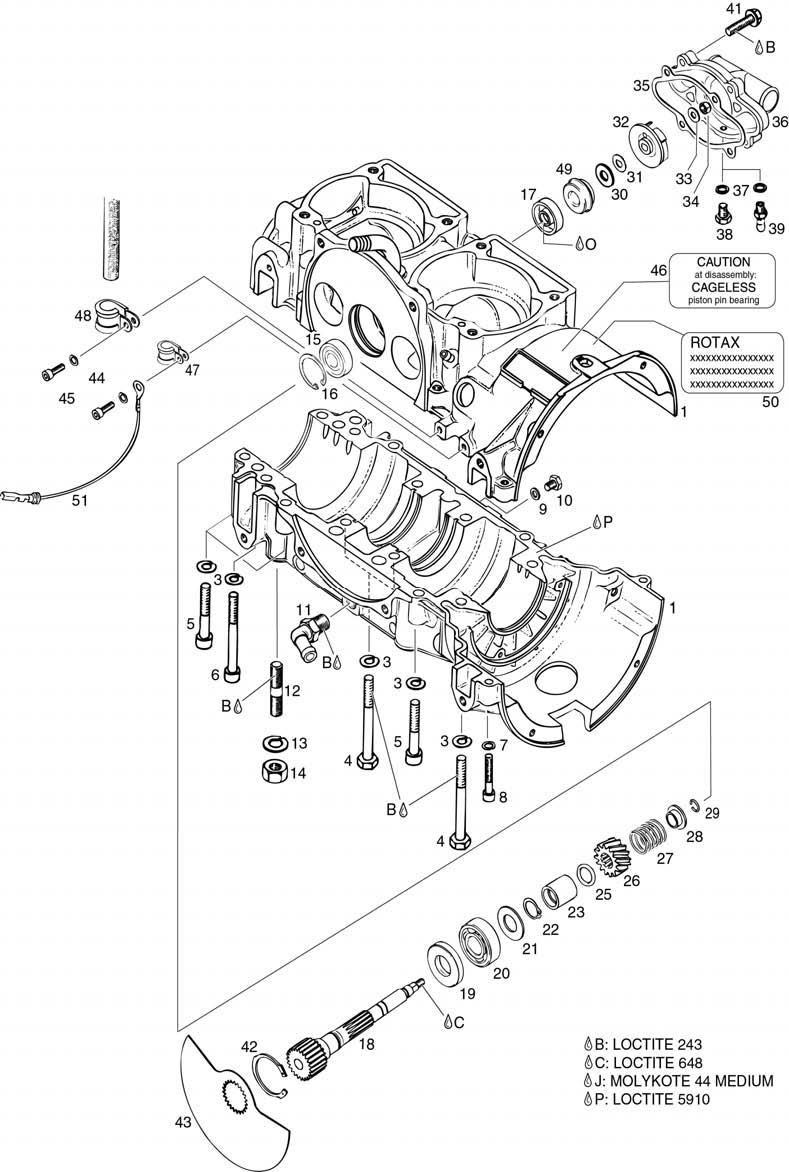

fig. 72-20-00-1
CRANKCASE, ROTARY VALVE DRIVE, WATER PUMP For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1-12 | 888471 | CRANKCASE-ASSY. | 1 | 1900.46 | + |
| 1-29,42 | 888476 | CRANKCASE-ASSY. WITH ROTARY VALVE DRIVE | 1 | 2114.48 | + |
| 3 | 945832 | LOCK WASHER DIN 128-A8-FST | 14 | 0.17 | + |
| 4 | 841302 | HEX. SCREW ISO 4014 - M8X65 - 8.8 | 6 | 1.82 | + |
| 5 | 841562 | ALLEN SCREW ISO 4762 - M8x45 - 8.8 | 6 | 0.96 | + |
| 6 | 841832 | ALLEN SCREW ISO 4762 - M8x75 - 8.8 | 2 | 3.07 | + |
| 7 | 945831 | LOCK WASHER DIN 128-A6-FST | 2 | 0.17 | + |
| 8 | 241811 | BTR M 6 x 35 mm, | 2 | 0.44 | + |
| 9 | 230415 | SEALING RING A 6X10 DIN 7603 | 1 | 1.33 | + |
| 10 | 240772 | HEX.SCREW ISO 4017 - M6X10 - 8.8 | 1 | 0.52 | + |
| 11 | 922242 | ANGULAR TUBE 1/4-18NPT | 1 | 19.08 | + |
| 12 | 940190 | STUD M10X31/20 | 4 | 4.42 | + |
| 13 | 945833 | LOCK WASHER A10 | 4 | 0.22 | + |
| 14 | 242091 | Ecrou M 10 | 4 | 1.03 | + |
| 15 | 932797 | B. BEARING 6201-Z, 12-32-10 | 1 | 28.62 | + |
| 16 | 245420 | RETAINING RING 32X1,2 | 1 | 1.86 | + |
| 17 | 850711 | OIL SEAL A 10X30X8 NBR | 1 | 25.99 | + |
| 18 | 837250 | ROTARY VALVE SHAFT | 1 | 271.08 | + |
| 19 | 930580 | OIL SEAL 20X40X7 | 1 | 25.54 | + |
| 20 | 932032 | BALL BEARING 6203 TVH C3,17-40-12 | 1 | 22.24 | + |
| 21 | 227439 | SHIM 17,2/32,5/1,5 | 1 | 4.14 | + |
| 22 | 845450 | RETAINING RING 17X1 | 1 | 1.18 | + |
| 23 | 847282 | SPACER | 1 | 15.78 | + |
| 25 | 831500 | O-RING 14-3 | 1 | 4.61 | + |
| 26 | 935736 | ROTARY VALVE GEAR 14 T. | 1 | 118.91 | + |
| 27 | 938810 | COMPRESSION SPRING 25,1 MM | 1 | 9.11 | + |
| 28 | 827430 | SPRING HOLDING CUP | 1 | 11.83 | + |
| 29 | 845160 | CIRCLIP 12 | 1b | 1.58 | + |
| 30 | 227945 | THRUST WASHER 8,5/15/0,5 | 1 | 1.76 | + |
| 31 | 227155 | FRICTION WASHER | 1 | 9.74 | + |
| 32 | 922036 | IMPELLER | 1 | 24.14 | + |
| 33 | 244211 | WASHER 6,4 DIN 134 | 1 | 0.17 | + |
| 34 | 842042 | LOCK NUT M6 | 1 | 2.5 | + |
| 35 | 831616 | GASKET | 1 | 9.05 | + |
| 36 | 922503 | WATER PUMP HOUSING | 1 | 339.29 | + |
| 37 | 230415 | SEALING RING A 6X10 DIN 7603 | 1 | 1.33 | + |
| 38 | 841581 | HEX. SCREW ISO4017-M6X8-8.8 | 1 | 0.49 | + |
| 39 | 940551 | HOSE NIPPLE M6 | 1 | 28.5 | + |
| 41 | 240036 | HEX. SCREW M6X25 DIN 933 | 1 | 0.64 | + |
| 42 | 945880 | RETAINING RING 40X1,75 | 1 | 3 | + |
| 43 | 924504 | ROTARY VALVE 132 DEGR., | 1 | 69.41 | + |
| 44 | 945830 | LOCK WASHER DIN 128-A5-FST | 2 | 0.17 | + |
| 45 | 840514 | ALLEN SCREW ISO 4762 - M5x16 - 8.8 | 2 | 0.43 | + |
| 46 | 897280 | "CAGELESS"-LABEL | 1 | 1.61 | + |
| 47 | 851111 | CABLE CLAMP 8/M5 | 1 | 13.13 | + |
| 48 | 851113 | CLAMP 18/M5 | 1 | 11.32 | + |
| 49 | 650370 | ROTARY SEAL | 1 | 46.91 | + |
| 50 | 897501 | RED WARNING LABEL | 1 | 6.5 | + |
